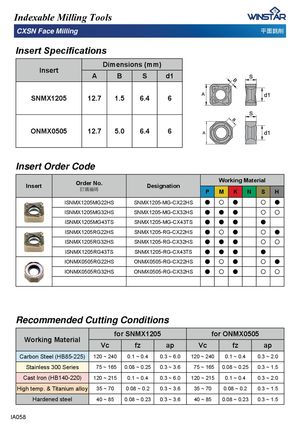

Indexable Milling Tools CXSN Face Milling 。棱搠⏙ ,QVHUW6SHFL¿FDWLRQV Dimensions (mm) Insert A B S d1 SNMX1205 12.7 1.5 6.4 6 ONMX0505 12.7 5.0 6.4 6 Insert Order Code Insert Order No.宑庋佷䩋 Working MaterialDesignationPMKNSH ISNMX1205MG22HS SNMX1205-MG-CX22HS β ΰ β ΰ β ISNMX1205MG32HS SNMX1205-MG-CX32HS β β β ΰ ΰ ISNMX1205MG43TS SNMX1205-MG-CX43TS β β β β ISNMX1205RG22HS SNMX1205-RG-CX22HS β ΰ β ΰ β ISNMX1205RG32HS SNMX1205-RG-CX32HS β β β ΰ ΰ ISNMX1205RG43TS SNMX1205-RG-CX43TS β β β β IONMX0505RG22HS ONMX0505-RG-CX22HS β ΰ β ΰ β IONMX0505RG32HS ONMX0505-RG-CX32HS β ΰ β ΰ ΰ Recommended Cutting Conditions for SNMX1205 for ONMX0505 Working Material Vc fz ap Vc fz ap Carbon Steel (HB85-225) 120 ~ 240 0.1 ~ 0.4 0.3 ~ 6.0 120 ~ 240 0.1 ~ 0.4 0.3 ~ 2.0 Stainless 300 Series 75 ~ 165 0.08 ~ 0.25 0.3 ~ 3.6 75 ~ 165 0.08 ~ 0.25 0.3 ~ 1.5 Cast Iron (HB140-220) 120 ~ 215 0.1 ~ 0.4 0.3 ~ 6.0 120 ~ 215 0.1 ~ 0.4 0.3 ~ 2.0 High temp. & Titanium alloy 35 ~ 70 0.08 ~ 0.2 0.3 ~ 3.6 35 ~ 70 0.08 ~ 0.2 0.3 ~ 1.5 Hardened steel 40 ~ 85 0.08 ~ 0.23 0.3 ~ 3.6 40 ~ 85 0.08 ~ 0.23 0.3 ~ 1.5 IA058
