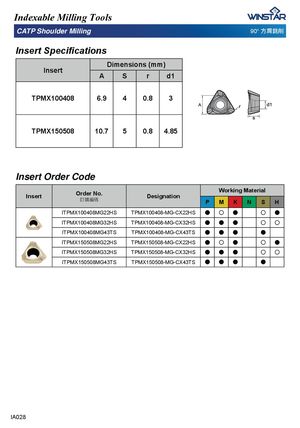

Indexable Milling Tools CATP Shoulder Milling 90° 㝈券搠⏙ ,QVHUW6SHFL¿FDWLRQV Dimensions (mm) Insert A S r d1 TPMX100408 6.9 4 0.8 3 TPMX150508 10.7 5 0.8 4.85 Insert Order Code Insert Order No.宑庋佷䩋 Working MaterialDesignationPMKNSH ITPMX100408MG22HS TPMX100408-MG-CX22HS β ΰ β ΰ β ITPMX100408MG32HS TPMX100408-MG-CX32HS β β β ΰ ΰ ITPMX100408MG43TS TPMX100408-MG-CX43TS β β β β ITPMX150508MG22HS TPMX150508-MG-CX22HS β ΰ β ΰ β ITPMX150508MG32HS TPMX150508-MG-CX32HS β β β ΰ ΰ ITPMX150508MG43TS TPMX150508-MG-CX43TS β β β β IA028
