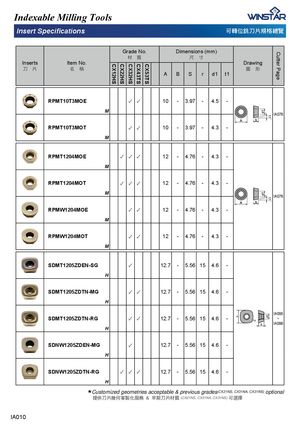

CX12HS CX22HS CX32HS CX43TS CX53TS Cutter Page Indexable Milling Tools ,QVHUW6SHFL¿FDWLRQV ╾惘⃜搠⎏䏖嬞㧋俌孌 Grade No. Dimensions (mm) 㣟!!幹 ⷉ!!ⶇ Inserts Item No. Drawing ⎏!!䏖 ▜!!䯀 ⢥!!ヱ A B S r d1 t1 RPMT10T3MOE ✓ ✓ 10 - 3.97 - 4.5 - M IA076 RPMT10T3MOT ✓ ✓ 10 - 3.97 - 4.3 - M RPMT1204MOE ✓ ✓ ✓ 12 - 4.76 - 4.3 - M RPMT1204MOT ✓ ✓ ✓ 12 - 4.76 - 4.3 - M IA076 RPMW1204MOE ✓ ✓ 12 - 4.76 - 4.3 - M RPMW1204MOT ✓ ✓ 12 - 4.76 - 4.3 - M SDMT1205ZDEN-SG ✓ 12.7 - 5.56 15 4.6 - H SDMT1205ZDTN-MG ✓ ✓ 12.7 - 5.56 15 4.6 - H IA095 SDMT1205ZDTN-RG ✓ ✓ 12.7 - 5.56 15 4.6 - ~ IA096 H SDNW1205ZDEN-MG ✓ 12.7 - 5.56 15 4.6 - H SDNW1205ZDTN-RG ✓ ✓ ✓ 12.7 - 5.56 15 4.6 - H *Customized geometries acceptable & 㕟K⎏䏖」⃤ⴱ媌⒥㢜⑨!&!㝸㢮⎏䏖㣟幹 previous grades(CX21NS, CX31NA, (CX21NS, CX31NA, CX31NS) ╾戇㙖 CX31NS) optional IA010
