Каталог Winstar инструмент со сменными пластинами 2020 - страница 18

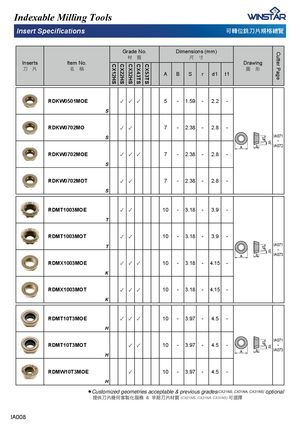

CX12HS CX22HS CX32HS CX43TS CX53TS Cutter Page Indexable Milling Tools ,QVHUW6SHFL¿FDWLRQV ╾惘⃜搠⎏䏖嬞㧋俌孌 Grade No. Dimensions (mm) 㣟!!幹 ⷉ!!ⶇ Inserts Item No. Drawing ⎏!!䏖 ▜!!䯀 ⢥!!ヱ A B S r d1 t1 RDKW0501MOE ✓ ✓ ✓ 5 - 1.59 - 2.2 - S RDKW0702MO ✓ ✓ 7 - 2.38 - 2.8 - S IA071~ IA072 RDKW0702MOE ✓ ✓ ✓ 7 - 2.38 - 2.8 - S RDKW0702MOT ✓ ✓ 7 - 2.38 - 2.8 - S RDMT1003MOE ✓ ✓ 10 - 3.18 - 3.9 - T RDMT1003MOT ✓ ✓ 10 - 3.18 - 3.9 - T IA071~ IA073 RDMX1003MOE ✓ ✓ ✓ 10 - 3.18 - 4.15 - K RDMX1003MOT ✓ ✓ ✓ 10 - 3.18 - 4.15 - K RDMT10T3MOE ✓ ✓ ✓ 10 - 3.97 - 4.5 - H IA071 RDMT10T3MOT ✓ ✓ 10 - 3.97 - 4.5 - ~ IA073 H RDMW10T3MOE ✓ 10 - 3.97 - 4.5 - H *Customized geometries acceptable & 㕟K⎏䏖」⃤ⴱ媌⒥㢜⑨!&!㝸㢮⎏䏖㣟幹 previous grades(CX21NS, CX31NA, (CX21NS, CX31NA, CX31NS) ╾戇㙖 CX31NS) optional IA008
