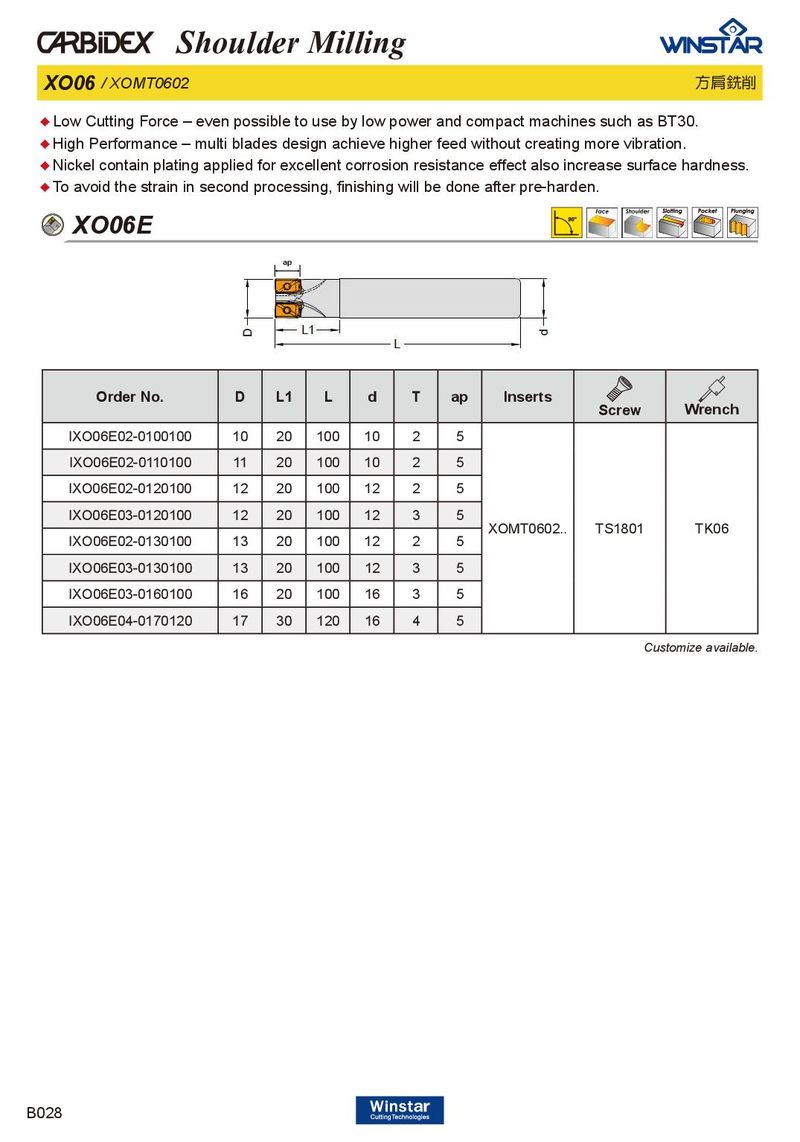

Shoulder Milling XO06 / XOMT0602 方肩銑削 ♦ Low Cutting Force – even possible to use by low power and compact machines such as BT30. ♦ High Performance – multi blades design achieve higher feed without creating more vibration. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. XO06E ap Order No. D L1 L d T ap Inserts Screw Wrench IXO06E02-0100100 10 20 100 10 2 5 IXO06E02-0110100 11 20 100 10 2 5 IXO06E02-0120100 12 20 100 12 2 5 IXO06E03-0120100 12 20 100 12 3 5 XOMT0602.. TS1801 TK06 IXO06E02-0130100 13 20 100 12 2 5 IXO06E03-0130100 13 20 100 12 3 5 IXO06E03-0160100 16 20 100 16 3 5 IXO06E04-0170120 17 30 120 16 4 5 Customize available. B028
