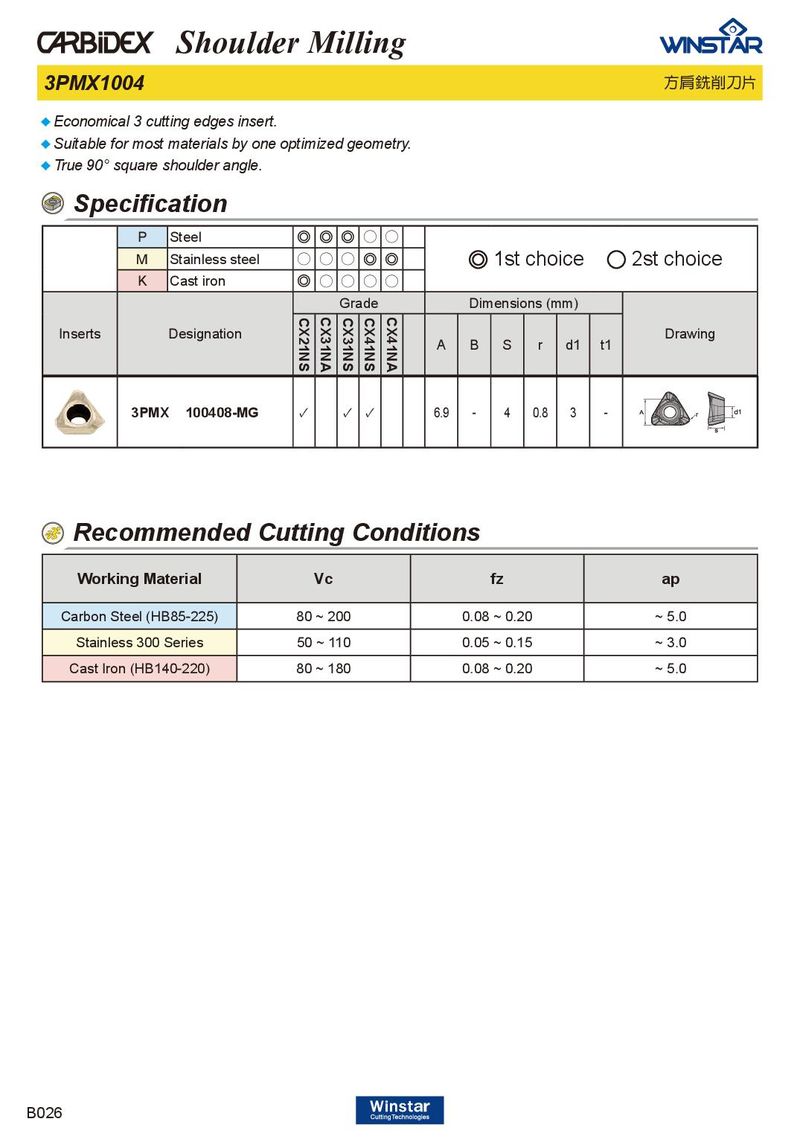

Shoulder Milling 3PMX1004 方肩銑削刀片 ♦ Economical 3 cutting edges insert. ♦ Suitable for most materials by one optimized geometry. ♦ True 90° square shoulder angle. Specification P Steel ◎ ◎ ◎ ○ ○ M Stainless steel ○ ○ ○ ◎ ◎ 1st choice 2st choice K Cast iron ◎ ○ ○ ○ ○ Grade Dimensions (mm) CX21NS CX31NA CX31NS CX41NS CX41NA Inserts Designation Drawing A B S r d1 t1 3PMX 100408-MG ✓ ✓ ✓ 6.9 - 4 0.8 3 - Recommended Cutting Conditions Working Material Vc fz ap Carbon Steel (HB85-225) 80 ~ 200 0.08 ~ 0.20 ~ 5.0 Stainless 300 Series 50 ~ 110 0.05 ~ 0.15 ~ 3.0 Cast Iron (HB140-220) 80 ~ 180 0.08 ~ 0.20 ~ 5.0 B026
