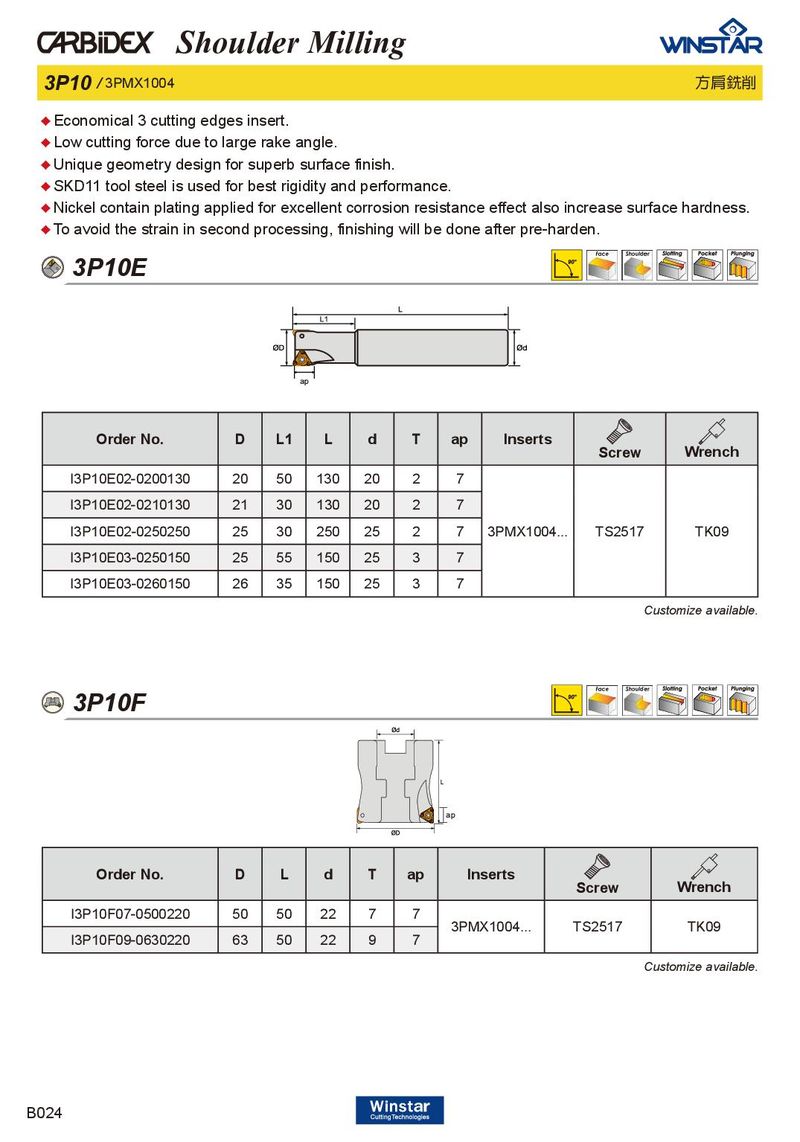

Shoulder Milling 3P10 / 3PMX1004 方肩銑削 ♦ Economical 3 cutting edges insert. ♦ Low cutting force due to large rake angle. ♦ Unique geometry design for superb surface finish. ♦ SKD11 tool steel is used for best rigidity and performance. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. 3P10E ap Order No. D L1 L d T ap Inserts Screw Wrench I3P10E02-0200130 20 50 130 20 2 7 I3P10E02-0210130 21 30 130 20 2 7 I3P10E02-0250250 25 30 250 25 2 7 3PMX1004... TS2517 TK09 I3P10E03-0250150 25 55 150 25 3 7 I3P10E03-0260150 26 35 150 25 3 7 Customize available. 3P10F ap Order No. D L d T ap Inserts Screw Wrench I3P10F07-0500220 50 50 22 7 7 3PMX1004... TS2517 TK09 I3P10F09-0630220 63 50 22 9 7 Customize available. B024
