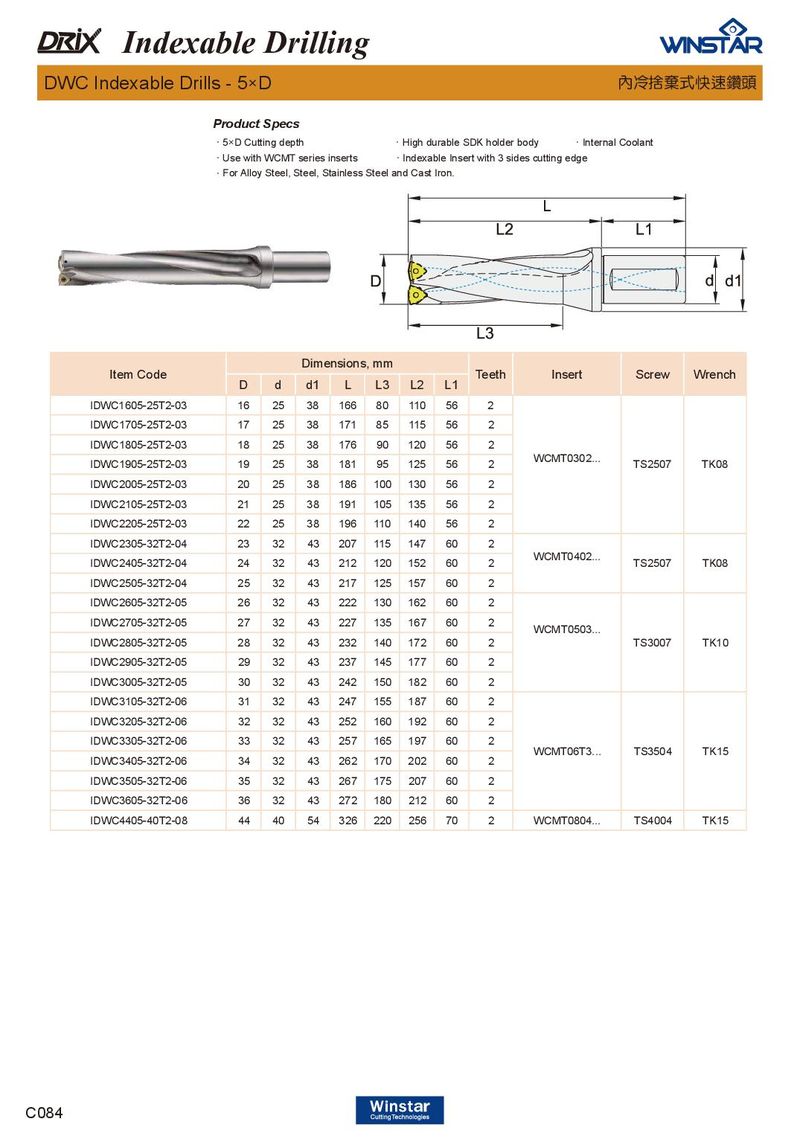

Indexable Drilling DWC Indexable Drills - 5×D 內冷捨棄式快速鑽頭 Product Specs ． 5×D Cutting depth ． High durable SDK holder body ． Internal Coolant ． Use with WCMT series inserts ． Indexable Insert with 3 sides cutting edge ． For Alloy Steel, Steel, Stainless Steel and Cast Iron. L Dimensions, mm Item Code Teeth Insert Screw Wrench D d d1 L L3 L2 L1 IDWC1605-25T2-03 16 25 38 166 80 110 56 2 IDWC1705-25T2-03 17 25 38 171 85 115 56 2 IDWC1805-25T2-03 18 25 38 176 90 120 56 2 WCMT0302... IDWC1905-25T2-03 19 25 38 181 95 125 56 2 TS2507 TK08 IDWC2005-25T2-03 20 25 38 186 100 130 56 2 IDWC2105-25T2-03 21 25 38 191 105 135 56 2 IDWC2205-25T2-03 22 25 38 196 110 140 56 2 IDWC2305-32T2-04 23 32 43 207 115 147 60 2 WCMT0402... IDWC2405-32T2-04 24 32 43 212 120 152 60 2 TS2507 TK08 IDWC2505-32T2-04 25 32 43 217 125 157 60 2 IDWC2605-32T2-05 26 32 43 222 130 162 60 2 IDWC2705-32T2-05 27 32 43 227 135 167 60 2 WCMT0503... IDWC2805-32T2-05 28 32 43 232 140 172 60 2 TS3007 TK10 IDWC2905-32T2-05 29 32 43 237 145 177 60 2 IDWC3005-32T2-05 30 32 43 242 150 182 60 2 IDWC3105-32T2-06 31 32 43 247 155 187 60 2 IDWC3205-32T2-06 32 32 43 252 160 192 60 2 IDWC3305-32T2-06 33 32 43 257 165 197 60 2 WCMT06T3... TS3504 TK15 IDWC3405-32T2-06 34 32 43 262 170 202 60 2 IDWC3505-32T2-06 35 32 43 267 175 207 60 2 IDWC3605-32T2-06 36 32 43 272 180 212 60 2 IDWC4405-40T2-08 44 40 54 326 220 256 70 2 WCMT0804... TS4004 TK15 C084
