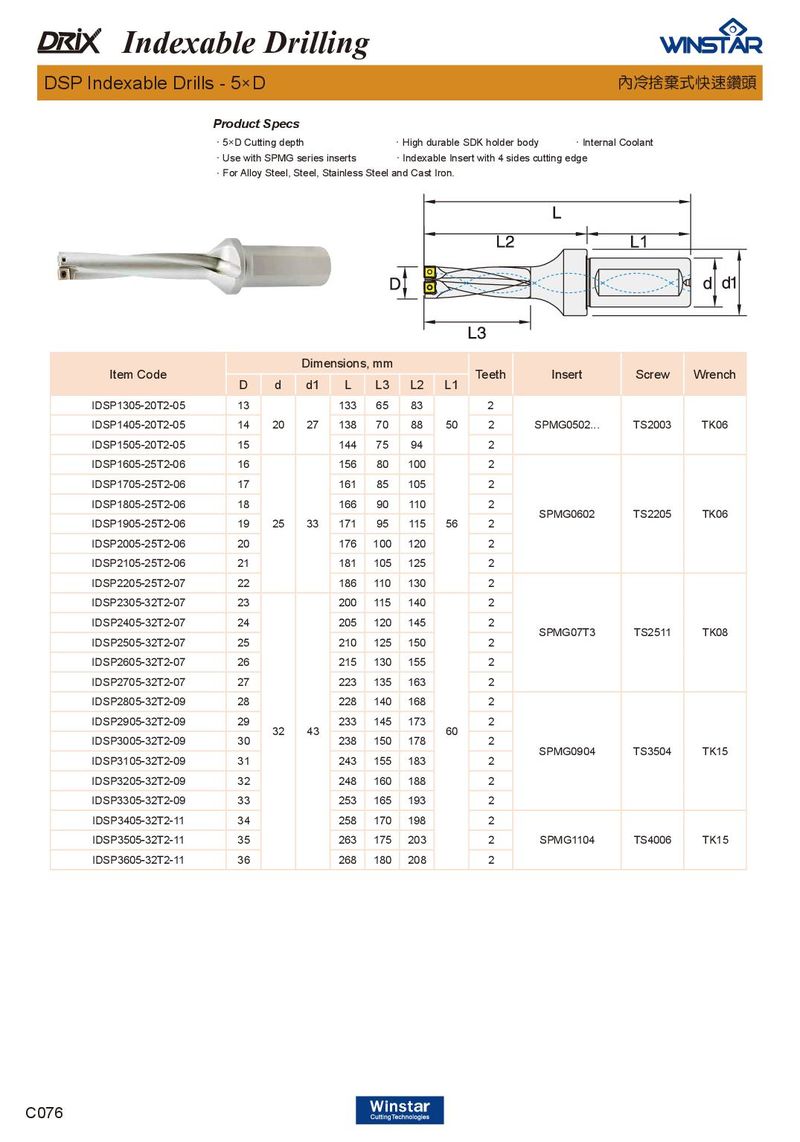

Indexable Drilling DSP Indexable Drills - 5×D 內冷捨棄式快速鑽頭 Product Specs ． 5×D Cutting depth ． High durable SDK holder body ． Internal Coolant ． Use with SPMG series inserts ． Indexable Insert with 4 sides cutting edge ． For Alloy Steel, Steel, Stainless Steel and Cast Iron. Dimensions, mm Item Code Teeth Insert Screw Wrench D d d1 L L3 L2 L1 IDSP1305-20T2-05 13 133 65 83 2 IDSP1405-20T2-05 14 20 27 138 70 88 50 2 SPMG0502... TS2003 TK06 IDSP1505-20T2-05 15 144 75 94 2 IDSP1605-25T2-06 16 156 80 100 2 IDSP1705-25T2-06 17 161 85 105 2 IDSP1805-25T2-06 18 166 90 110 2 SPMG0602 TS2205 TK06 IDSP1905-25T2-06 19 25 33 171 95 115 56 2 IDSP2005-25T2-06 20 176 100 120 2 IDSP2105-25T2-06 21 181 105 125 2 IDSP2205-25T2-07 22 186 110 130 2 IDSP2305-32T2-07 23 200 115 140 2 IDSP2405-32T2-07 24 205 120 145 2 SPMG07T3 TS2511 TK08 IDSP2505-32T2-07 25 210 125 150 2 IDSP2605-32T2-07 26 215 130 155 2 IDSP2705-32T2-07 27 223 135 163 2 IDSP2805-32T2-09 28 228 140 168 2 IDSP2905-32T2-09 29 233 145 173 2 32 43 60 IDSP3005-32T2-09 30 238 150 178 2 SPMG0904 TS3504 TK15 IDSP3105-32T2-09 31 243 155 183 2 IDSP3205-32T2-09 32 248 160 188 2 IDSP3305-32T2-09 33 253 165 193 2 IDSP3405-32T2-11 34 258 170 198 2 IDSP3505-32T2-11 35 263 175 203 2 SPMG1104 TS4006 TK15 IDSP3605-32T2-11 36 268 180 208 2 C076
