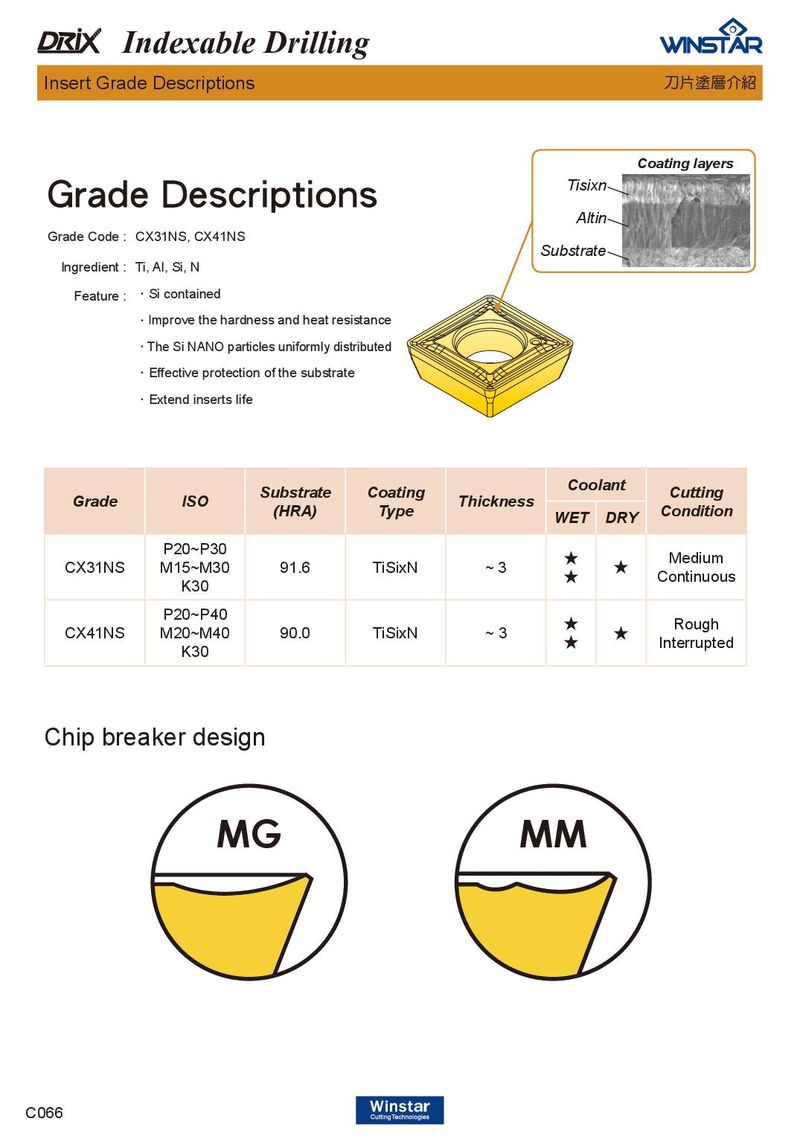

Indexable Drilling Insert Grade Descriptions 刀片塗層介紹 Coating layers Tisixn Grade Descriptions Altin Grade Code : CX31NS, CX41NS Substrate Ingredient : Ti, Al, Si, N Feature : ． Si contained ． Improve the hardness and heat resistance ． The Si NANO particles uniformly distributed ． Effective protection of the substrate ． Extend inserts life Coolant Substrate Coating Cutting Grade ISO Thickness (HRA) Type Condition WET DRY P20~P30 ★ Medium CX31NS M15~M30 91.6 TiSixN ~ 3 ★ ★ Continuous K30 P20~P40 ★ Rough CX41NS M20~M40 90.0 TiSixN ~ 3 ★ ★ Interrupted K30 Chip breaker design MG MM C066
