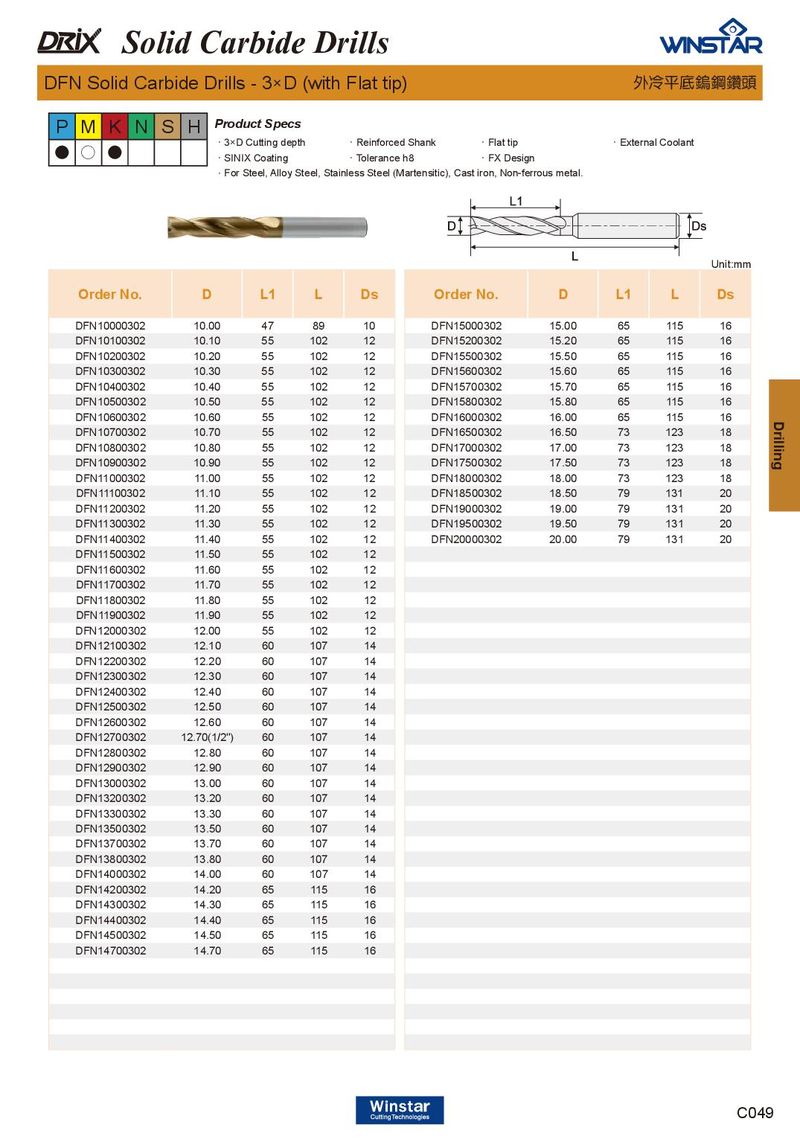

Solid Carbide Drills DFN Solid Carbide Drills - 3×D (with Flat tip) 外冷平底鎢鋼鑽頭 Product Specs P M K N S H ． 3×D Cutting depth ． Reinforced Shank ． Flat tip ． External Coolant ● ○ ● ． SINIX Coating ． Tolerance h8 ． FX Design ． For Steel, Alloy Steel, Stainless Steel (Martensitic), Cast iron, Non-ferrous metal. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds DFN10000302 10.00 47 89 10 DFN15000302 15.00 65 115 16 DFN10100302 10.10 55 102 12 DFN15200302 15.20 65 115 16 DFN10200302 10.20 55 102 12 DFN15500302 15.50 65 115 16 DFN10300302 10.30 55 102 12 DFN15600302 15.60 65 115 16 DFN10400302 10.40 55 102 12 DFN15700302 15.70 65 115 16 DFN10500302 10.50 55 102 12 DFN15800302 15.80 65 115 16 DFN10600302 10.60 55 102 12 DFN16000302 16.00 65 115 16 Drilling DFN10700302 10.70 55 102 12 DFN16500302 16.50 73 123 18 DFN10800302 10.80 55 102 12 DFN17000302 17.00 73 123 18 DFN10900302 10.90 55 102 12 DFN17500302 17.50 73 123 18 DFN11000302 11.00 55 102 12 DFN18000302 18.00 73 123 18 DFN11100302 11.10 55 102 12 DFN18500302 18.50 79 131 20 DFN11200302 11.20 55 102 12 DFN19000302 19.00 79 131 20 DFN11300302 11.30 55 102 12 DFN19500302 19.50 79 131 20 DFN11400302 11.40 55 102 12 DFN20000302 20.00 79 131 20 DFN11500302 11.50 55 102 12 DFN11600302 11.60 55 102 12 DFN11700302 11.70 55 102 12 DFN11800302 11.80 55 102 12 DFN11900302 11.90 55 102 12 DFN12000302 12.00 55 102 12 DFN12100302 12.10 60 107 14 DFN12200302 12.20 60 107 14 DFN12300302 12.30 60 107 14 DFN12400302 12.40 60 107 14 DFN12500302 12.50 60 107 14 DFN12600302 12.60 60 107 14 DFN12700302 12.70(1/2") 60 107 14 DFN12800302 12.80 60 107 14 DFN12900302 12.90 60 107 14 DFN13000302 13.00 60 107 14 DFN13200302 13.20 60 107 14 DFN13300302 13.30 60 107 14 DFN13500302 13.50 60 107 14 DFN13700302 13.70 60 107 14 DFN13800302 13.80 60 107 14 DFN14000302 14.00 60 107 14 DFN14200302 14.20 65 115 16 DFN14300302 14.30 65 115 16 DFN14400302 14.40 65 115 16 DFN14500302 14.50 65 115 16 DFN14700302 14.70 65 115 16 C049
