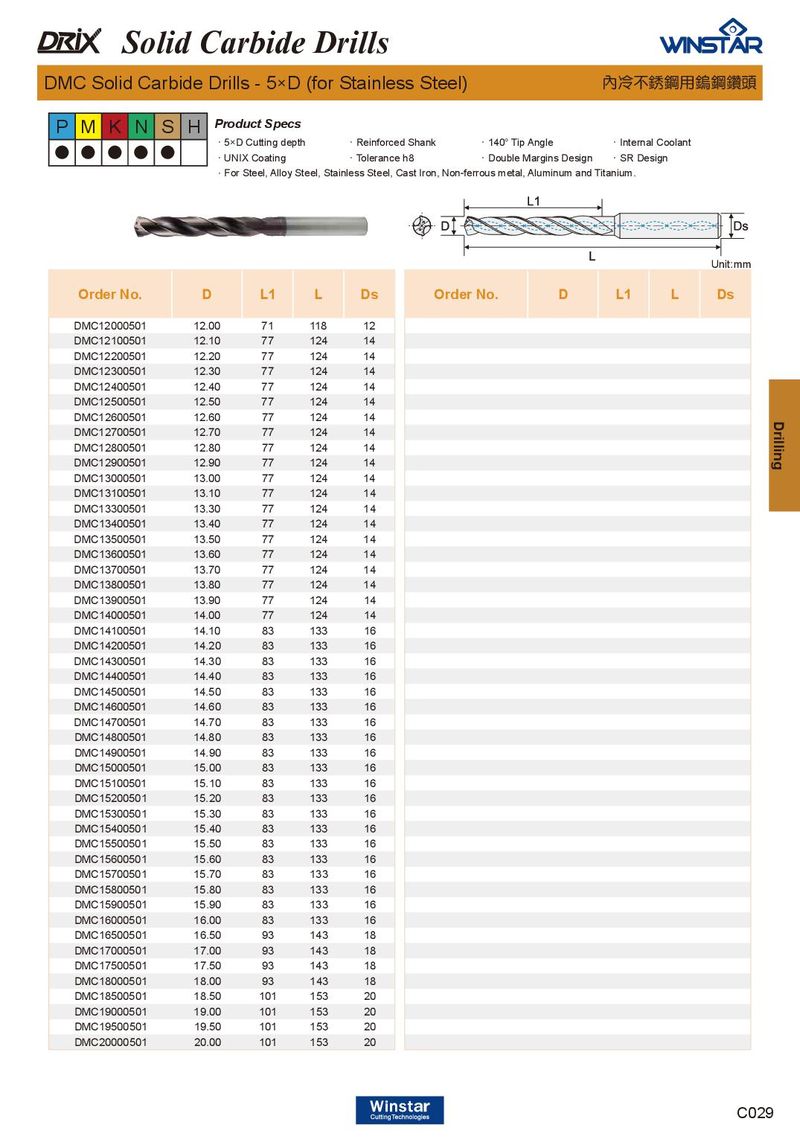

Solid Carbide Drills DMC Solid Carbide Drills - 5×D (for Stainless Steel) 內冷不銹鋼用鎢鋼鑽頭 Product Specs P M K N S H ． 5×D Cutting depth ． Reinforced Shank ． 140° Tip Angle ． Internal Coolant ● ● ● ● ● ． UNIX Coating ． Tolerance h8 ． Double Margins Design ． SR Design ． For Steel, Alloy Steel, Stainless Steel, Cast Iron, Non-ferrous metal, Aluminum and Titanium. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds DMC12000501 12.00 71 118 12 DMC12100501 12.10 77 124 14 DMC12200501 12.20 77 124 14 DMC12300501 12.30 77 124 14 DMC12400501 12.40 77 124 14 DMC12500501 12.50 77 124 14 DMC12600501 12.60 77 124 14 Drilling DMC12700501 12.70 77 124 14 DMC12800501 12.80 77 124 14 DMC12900501 12.90 77 124 14 DMC13000501 13.00 77 124 14 DMC13100501 13.10 77 124 14 DMC13300501 13.30 77 124 14 DMC13400501 13.40 77 124 14 DMC13500501 13.50 77 124 14 DMC13600501 13.60 77 124 14 DMC13700501 13.70 77 124 14 DMC13800501 13.80 77 124 14 DMC13900501 13.90 77 124 14 DMC14000501 14.00 77 124 14 DMC14100501 14.10 83 133 16 DMC14200501 14.20 83 133 16 DMC14300501 14.30 83 133 16 DMC14400501 14.40 83 133 16 DMC14500501 14.50 83 133 16 DMC14600501 14.60 83 133 16 DMC14700501 14.70 83 133 16 DMC14800501 14.80 83 133 16 DMC14900501 14.90 83 133 16 DMC15000501 15.00 83 133 16 DMC15100501 15.10 83 133 16 DMC15200501 15.20 83 133 16 DMC15300501 15.30 83 133 16 DMC15400501 15.40 83 133 16 DMC15500501 15.50 83 133 16 DMC15600501 15.60 83 133 16 DMC15700501 15.70 83 133 16 DMC15800501 15.80 83 133 16 DMC15900501 15.90 83 133 16 DMC16000501 16.00 83 133 16 DMC16500501 16.50 93 143 18 DMC17000501 17.00 93 143 18 DMC17500501 17.50 93 143 18 DMC18000501 18.00 93 143 18 DMC18500501 18.50 101 153 20 DMC19000501 19.00 101 153 20 DMC19500501 19.50 101 153 20 DMC20000501 20.00 101 153 20 C029
