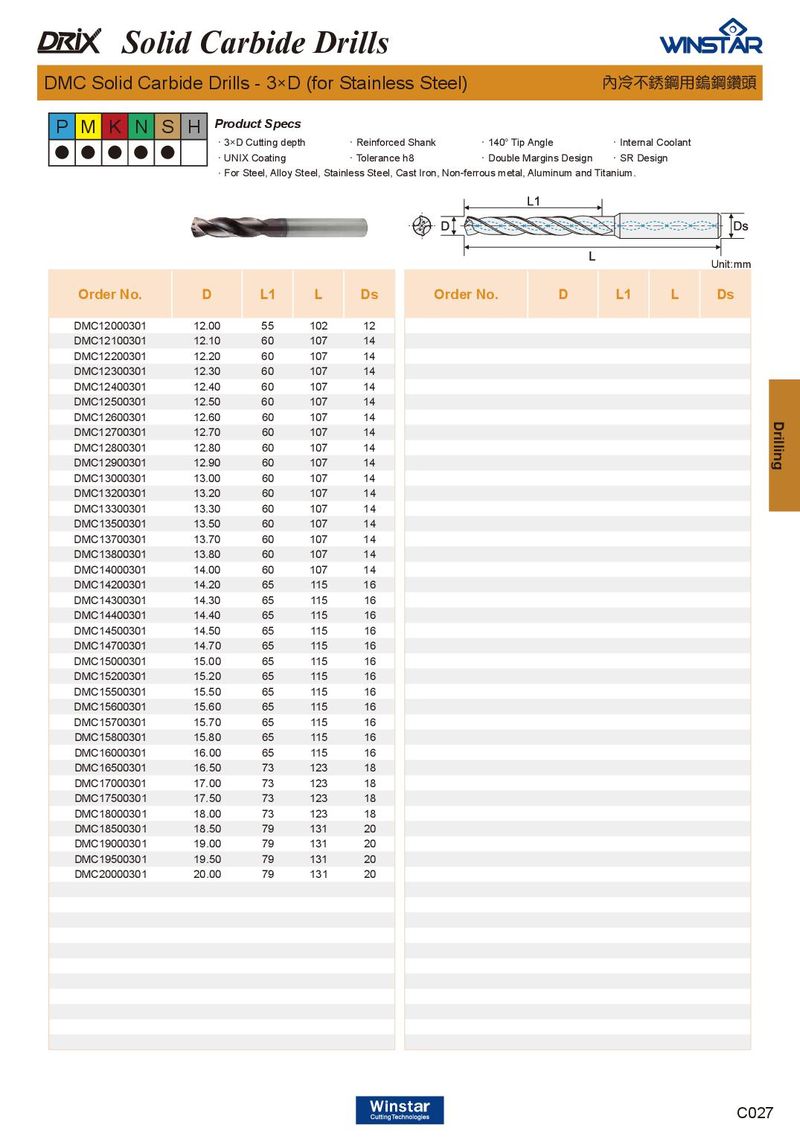

Solid Carbide Drills DMC Solid Carbide Drills - 3×D (for Stainless Steel) 內冷不銹鋼用鎢鋼鑽頭 Product Specs P M K N S H ． 3×D Cutting depth ． Reinforced Shank ． 140° Tip Angle ． Internal Coolant ● ● ● ● ● ． UNIX Coating ． Tolerance h8 ． Double Margins Design ． SR Design ． For Steel, Alloy Steel, Stainless Steel, Cast Iron, Non-ferrous metal, Aluminum and Titanium. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds DMC12000301 12.00 55 102 12 DMC12100301 12.10 60 107 14 DMC12200301 12.20 60 107 14 DMC12300301 12.30 60 107 14 DMC12400301 12.40 60 107 14 DMC12500301 12.50 60 107 14 DMC12600301 12.60 60 107 14 Drilling DMC12700301 12.70 60 107 14 DMC12800301 12.80 60 107 14 DMC12900301 12.90 60 107 14 DMC13000301 13.00 60 107 14 DMC13200301 13.20 60 107 14 DMC13300301 13.30 60 107 14 DMC13500301 13.50 60 107 14 DMC13700301 13.70 60 107 14 DMC13800301 13.80 60 107 14 DMC14000301 14.00 60 107 14 DMC14200301 14.20 65 115 16 DMC14300301 14.30 65 115 16 DMC14400301 14.40 65 115 16 DMC14500301 14.50 65 115 16 DMC14700301 14.70 65 115 16 DMC15000301 15.00 65 115 16 DMC15200301 15.20 65 115 16 DMC15500301 15.50 65 115 16 DMC15600301 15.60 65 115 16 DMC15700301 15.70 65 115 16 DMC15800301 15.80 65 115 16 DMC16000301 16.00 65 115 16 DMC16500301 16.50 73 123 18 DMC17000301 17.00 73 123 18 DMC17500301 17.50 73 123 18 DMC18000301 18.00 73 123 18 DMC18500301 18.50 79 131 20 DMC19000301 19.00 79 131 20 DMC19500301 19.50 79 131 20 DMC20000301 20.00 79 131 20 C027
