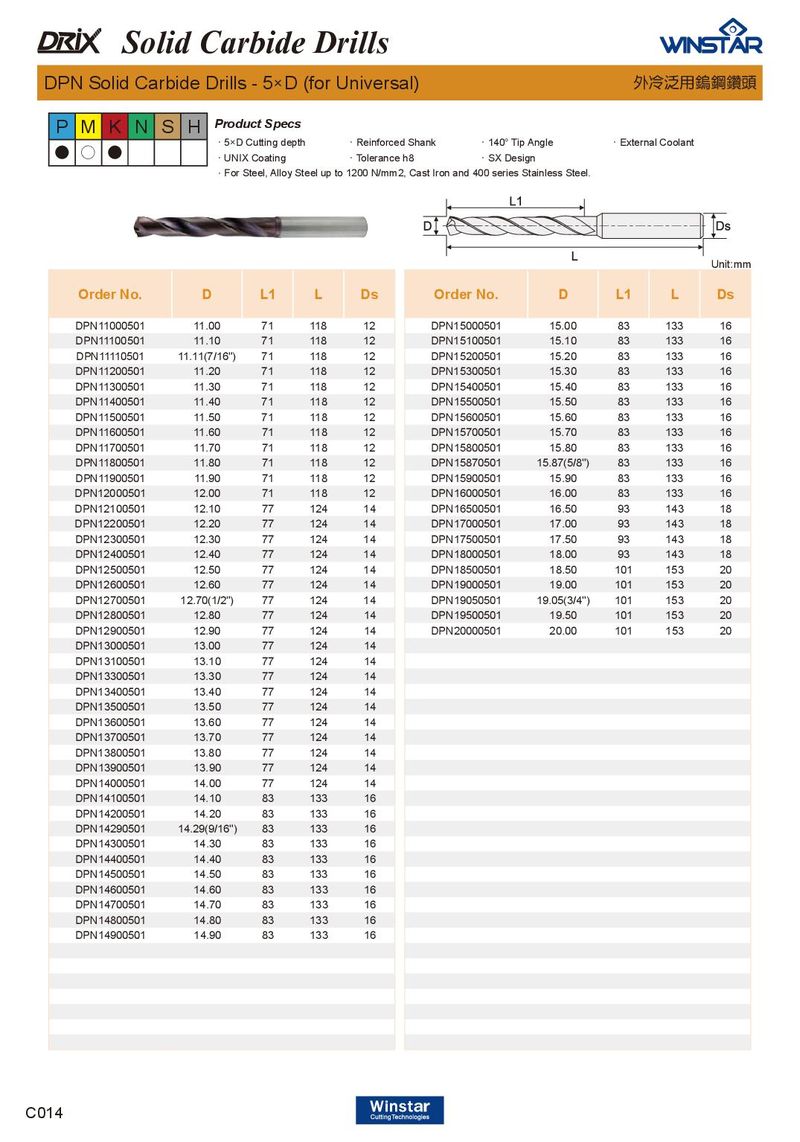

Solid Carbide Drills DPN Solid Carbide Drills - 5×D (for Universal) 外冷泛用鎢鋼鑽頭 Product Specs P M K N S H ． 5×D Cutting depth ． Reinforced Shank ． 140° Tip Angle ． External Coolant ● ○ ● ． UNIX Coating ． Tolerance h8 ． SX Design ． For Steel, Alloy Steel up to 1200 N/mm2, Cast Iron and 400 series Stainless Steel. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds DPN11000501 11.00 71 118 12 DPN15000501 15.00 83 133 16 DPN11100501 11.10 71 118 12 DPN15100501 15.10 83 133 16 DPN11110501 11.11(7/16") 71 118 12 DPN15200501 15.20 83 133 16 DPN11200501 11.20 71 118 12 DPN15300501 15.30 83 133 16 DPN11300501 11.30 71 118 12 DPN15400501 15.40 83 133 16 DPN11400501 11.40 71 118 12 DPN15500501 15.50 83 133 16 DPN11500501 11.50 71 118 12 DPN15600501 15.60 83 133 16 DPN11600501 11.60 71 118 12 DPN15700501 15.70 83 133 16 DPN11700501 11.70 71 118 12 DPN15800501 15.80 83 133 16 DPN11800501 11.80 71 118 12 DPN15870501 15.87(5/8") 83 133 16 DPN11900501 11.90 71 118 12 DPN15900501 15.90 83 133 16 DPN12000501 12.00 71 118 12 DPN16000501 16.00 83 133 16 DPN12100501 12.10 77 124 14 DPN16500501 16.50 93 143 18 DPN12200501 12.20 77 124 14 DPN17000501 17.00 93 143 18 DPN12300501 12.30 77 124 14 DPN17500501 17.50 93 143 18 DPN12400501 12.40 77 124 14 DPN18000501 18.00 93 143 18 DPN12500501 12.50 77 124 14 DPN18500501 18.50 101 153 20 DPN12600501 12.60 77 124 14 DPN19000501 19.00 101 153 20 DPN12700501 12.70(1/2") 77 124 14 DPN19050501 19.05(3/4") 101 153 20 DPN12800501 12.80 77 124 14 DPN19500501 19.50 101 153 20 DPN12900501 12.90 77 124 14 DPN20000501 20.00 101 153 20 DPN13000501 13.00 77 124 14 DPN13100501 13.10 77 124 14 DPN13300501 13.30 77 124 14 DPN13400501 13.40 77 124 14 DPN13500501 13.50 77 124 14 DPN13600501 13.60 77 124 14 DPN13700501 13.70 77 124 14 DPN13800501 13.80 77 124 14 DPN13900501 13.90 77 124 14 DPN14000501 14.00 77 124 14 DPN14100501 14.10 83 133 16 DPN14200501 14.20 83 133 16 DPN14290501 14.29(9/16") 83 133 16 DPN14300501 14.30 83 133 16 DPN14400501 14.40 83 133 16 DPN14500501 14.50 83 133 16 DPN14600501 14.60 83 133 16 DPN14700501 14.70 83 133 16 DPN14800501 14.80 83 133 16 DPN14900501 14.90 83 133 16 C014
