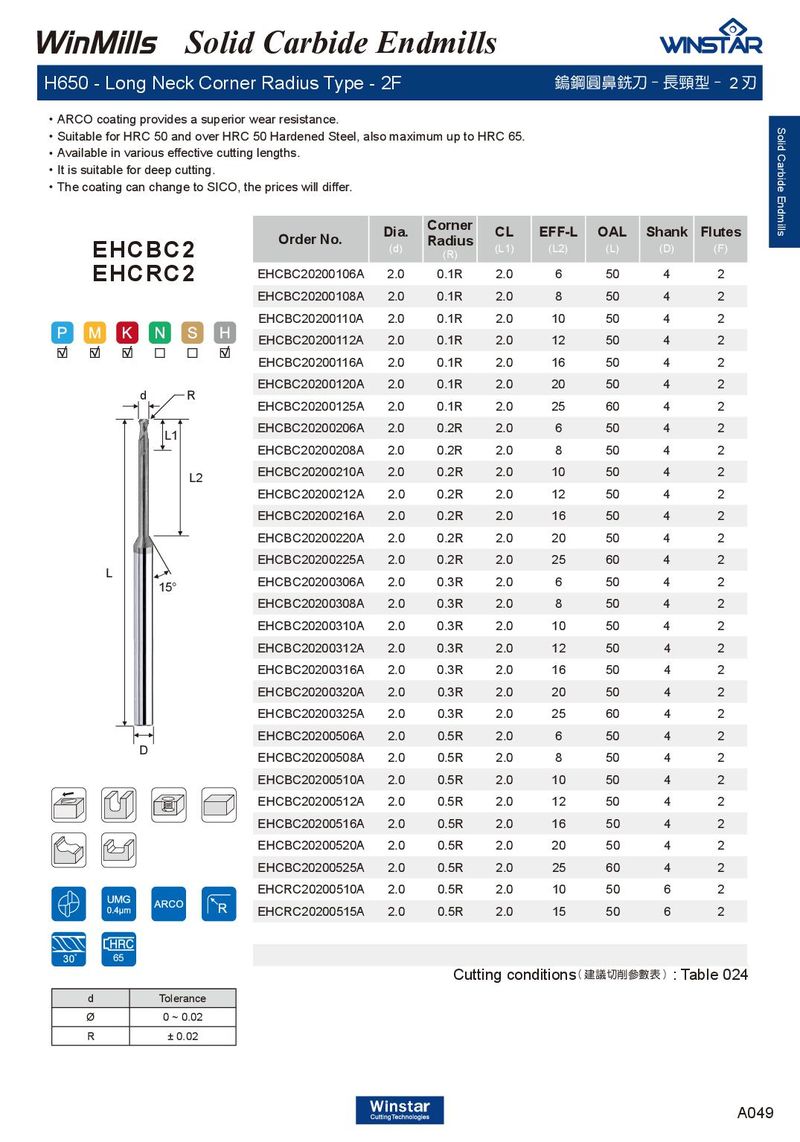

Solid Carbide Endmills H650 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2 刃 ． ARCO coating provides a superior wear resistance. Solid Carbide Endmills ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC2 (R) EHCRC2 EHCBC20200106A 2.0 0.1R 2.0 6 50 4 2 EHCBC20200108A 2.0 0.1R 2.0 8 50 4 2 EHCBC20200110A 2.0 0.1R 2.0 10 50 4 2 EHCBC20200112A 2.0 0.1R 2.0 12 50 4 2 EHCBC20200116A 2.0 0.1R 2.0 16 50 4 2 EHCBC20200120A 2.0 0.1R 2.0 20 50 4 2 d R EHCBC20200125A 2.0 0.1R 2.0 25 60 4 2 EHCBC20200206A 2.0 0.2R 2.0 6 50 4 2 L1 EHCBC20200208A 2.0 0.2R 2.0 8 50 4 2 EHCBC20200210A 2.0 0.2R 2.0 10 50 4 2 L2 EHCBC20200212A 2.0 0.2R 2.0 12 50 4 2 EHCBC20200216A 2.0 0.2R 2.0 16 50 4 2 EHCBC20200220A 2.0 0.2R 2.0 20 50 4 2 EHCBC20200225A 2.0 0.2R 2.0 25 60 4 2 L EHCBC20200306A 2.0 0.3R 2.0 6 50 4 2 15° EHCBC20200308A 2.0 0.3R 2.0 8 50 4 2 EHCBC20200310A 2.0 0.3R 2.0 10 50 4 2 EHCBC20200312A 2.0 0.3R 2.0 12 50 4 2 EHCBC20200316A 2.0 0.3R 2.0 16 50 4 2 EHCBC20200320A 2.0 0.3R 2.0 20 50 4 2 EHCBC20200325A 2.0 0.3R 2.0 25 60 4 2 EHCBC20200506A 2.0 0.5R 2.0 6 50 4 2 D EHCBC20200508A 2.0 0.5R 2.0 8 50 4 2 EHCBC20200510A 2.0 0.5R 2.0 10 50 4 2 EHCBC20200512A 2.0 0.5R 2.0 12 50 4 2 EHCBC20200516A 2.0 0.5R 2.0 16 50 4 2 EHCBC20200520A 2.0 0.5R 2.0 20 50 4 2 EHCBC20200525A 2.0 0.5R 2.0 25 60 4 2 EHCRC20200510A 2.0 0.5R 2.0 10 50 6 2 EHCRC20200515A 2.0 0.5R 2.0 15 50 6 2 65 Cutting conditions ( 建議切削參數表 ) : Table 024 d Tolerance Ø 0 ~ 0.02 R ± 0.02 A049
