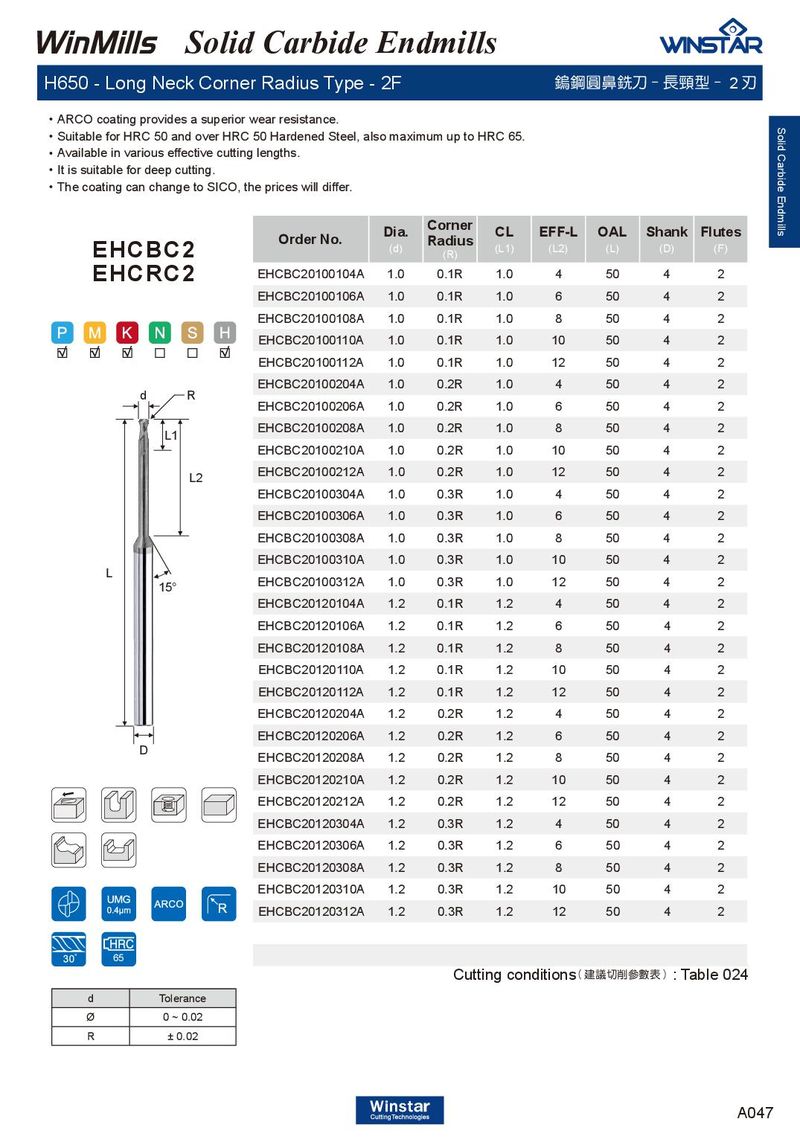

Solid Carbide Endmills H650 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2 刃 ． ARCO coating provides a superior wear resistance. Solid Carbide Endmills ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC2 (R) EHCRC2 EHCBC20100104A 1.0 0.1R 1.0 4 50 4 2 EHCBC20100106A 1.0 0.1R 1.0 6 50 4 2 EHCBC20100108A 1.0 0.1R 1.0 8 50 4 2 EHCBC20100110A 1.0 0.1R 1.0 10 50 4 2 EHCBC20100112A 1.0 0.1R 1.0 12 50 4 2 EHCBC20100204A 1.0 0.2R 1.0 4 50 4 2 d R EHCBC20100206A 1.0 0.2R 1.0 6 50 4 2 EHCBC20100208A 1.0 0.2R 1.0 8 50 4 2 L1 EHCBC20100210A 1.0 0.2R 1.0 10 50 4 2 EHCBC20100212A 1.0 0.2R 1.0 12 50 4 2 L2 EHCBC20100304A 1.0 0.3R 1.0 4 50 4 2 EHCBC20100306A 1.0 0.3R 1.0 6 50 4 2 EHCBC20100308A 1.0 0.3R 1.0 8 50 4 2 EHCBC20100310A 1.0 0.3R 1.0 10 50 4 2 L EHCBC20100312A 1.0 0.3R 1.0 12 50 4 2 15° EHCBC20120104A 1.2 0.1R 1.2 4 50 4 2 EHCBC20120106A 1.2 0.1R 1.2 6 50 4 2 EHCBC20120108A 1.2 0.1R 1.2 8 50 4 2 EHCBC20120110A 1.2 0.1R 1.2 10 50 4 2 EHCBC20120112A 1.2 0.1R 1.2 12 50 4 2 EHCBC20120204A 1.2 0.2R 1.2 4 50 4 2 EHCBC20120206A 1.2 0.2R 1.2 6 50 4 2 D EHCBC20120208A 1.2 0.2R 1.2 8 50 4 2 EHCBC20120210A 1.2 0.2R 1.2 10 50 4 2 EHCBC20120212A 1.2 0.2R 1.2 12 50 4 2 EHCBC20120304A 1.2 0.3R 1.2 4 50 4 2 EHCBC20120306A 1.2 0.3R 1.2 6 50 4 2 EHCBC20120308A 1.2 0.3R 1.2 8 50 4 2 EHCBC20120310A 1.2 0.3R 1.2 10 50 4 2 EHCBC20120312A 1.2 0.3R 1.2 12 50 4 2 65 Cutting conditions ( 建議切削參數表 ) : Table 024 d Tolerance Ø 0 ~ 0.02 R ± 0.02 A047
