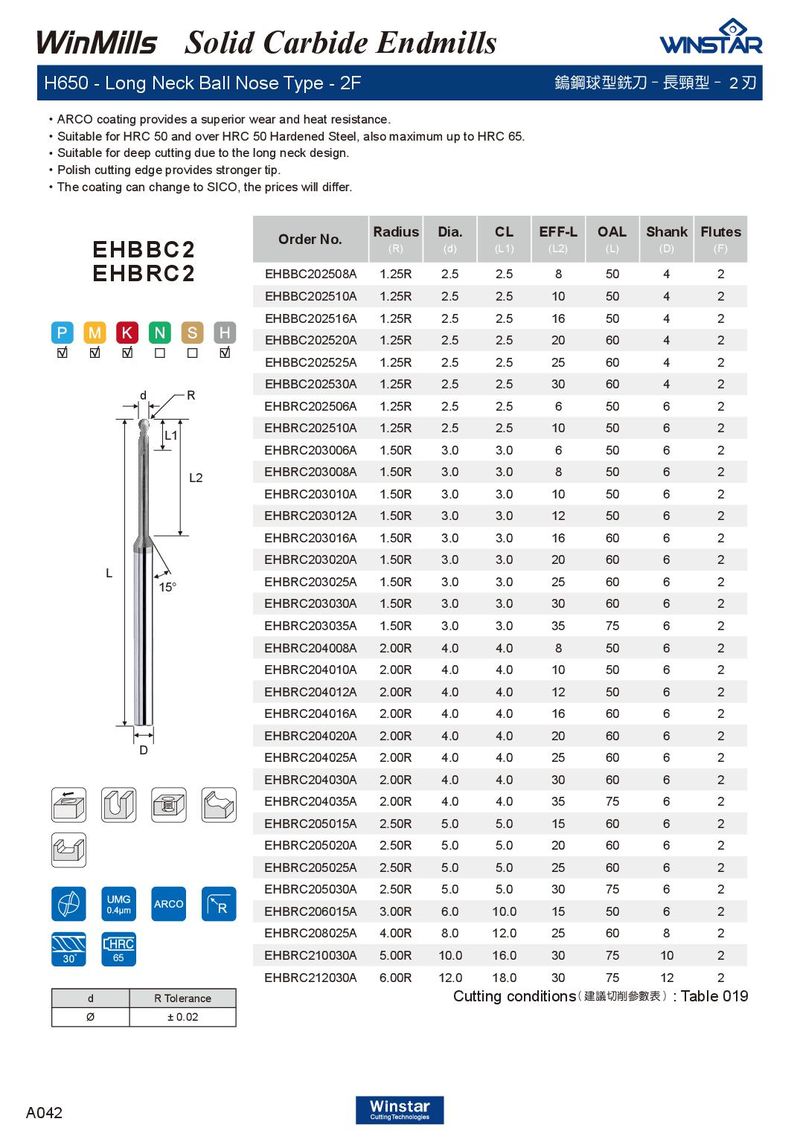

Solid Carbide Endmills H650 - Long Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 長頸型 - 2 刃 ． ARCO coating provides a superior wear and heat resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Suitable for deep cutting due to the long neck design. ． Polish cutting edge provides stronger tip. ． The coating can change to SICO, the prices will differ. Radius Dia. CL EFF-L OAL Shank Flutes Order No. (R) (d) (L1) (L2) (L) (D) (F) EHBBC2 EHBRC2 EHBBC202508A 1.25R 2.5 2.5 8 50 4 2 EHBBC202510A 1.25R 2.5 2.5 10 50 4 2 EHBBC202516A 1.25R 2.5 2.5 16 50 4 2 EHBBC202520A 1.25R 2.5 2.5 20 60 4 2 EHBBC202525A 1.25R 2.5 2.5 25 60 4 2 EHBBC202530A 1.25R 2.5 2.5 30 60 4 2 d R EHBRC202506A 1.25R 2.5 2.5 6 50 6 2 EHBRC202510A 1.25R 2.5 2.5 10 50 6 2 L1 EHBRC203006A 1.50R 3.0 3.0 6 50 6 2 EHBRC203008A 1.50R 3.0 3.0 8 50 6 2 L2 EHBRC203010A 1.50R 3.0 3.0 10 50 6 2 EHBRC203012A 1.50R 3.0 3.0 12 50 6 2 EHBRC203016A 1.50R 3.0 3.0 16 60 6 2 EHBRC203020A 1.50R 3.0 3.0 20 60 6 2 L EHBRC203025A 1.50R 3.0 3.0 25 60 6 2 15° EHBRC203030A 1.50R 3.0 3.0 30 60 6 2 EHBRC203035A 1.50R 3.0 3.0 35 75 6 2 EHBRC204008A 2.00R 4.0 4.0 8 50 6 2 EHBRC204010A 2.00R 4.0 4.0 10 50 6 2 EHBRC204012A 2.00R 4.0 4.0 12 50 6 2 EHBRC204016A 2.00R 4.0 4.0 16 60 6 2 EHBRC204020A 2.00R 4.0 4.0 20 60 6 2 D EHBRC204025A 2.00R 4.0 4.0 25 60 6 2 EHBRC204030A 2.00R 4.0 4.0 30 60 6 2 EHBRC204035A 2.00R 4.0 4.0 35 75 6 2 EHBRC205015A 2.50R 5.0 5.0 15 60 6 2 EHBRC205020A 2.50R 5.0 5.0 20 60 6 2 EHBRC205025A 2.50R 5.0 5.0 25 60 6 2 EHBRC205030A 2.50R 5.0 5.0 30 75 6 2 EHBRC206015A 3.00R 6.0 10.0 15 50 6 2 EHBRC208025A 4.00R 8.0 12.0 25 60 8 2 65 EHBRC210030A 5.00R 10.0 16.0 30 75 10 2 EHBRC212030A 6.00R 12.0 18.0 30 75 12 2 d R Tolerance Cutting conditions ( 建議切削參數表 ) : Table 019 Ø ± 0.02 A042
