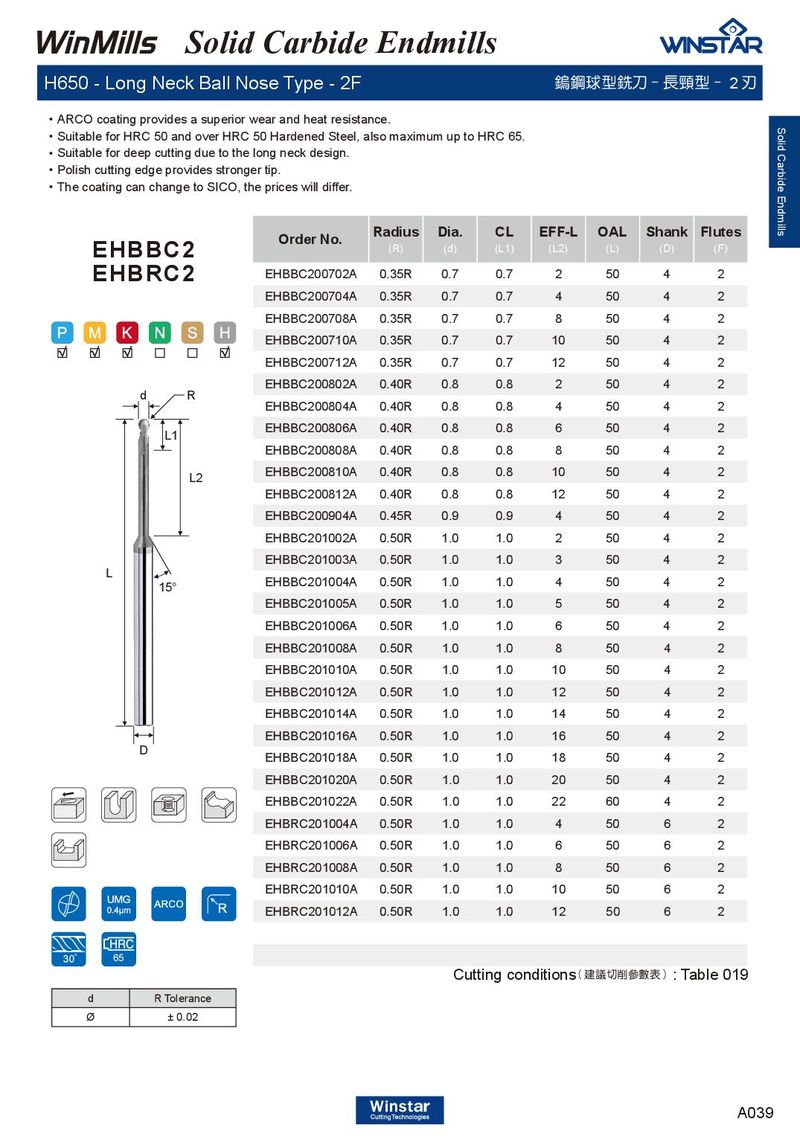

Solid Carbide Endmills H650 - Long Neck Ball Nose Type - 2F 鎢鋼球型銑刀 - 長頸型 - 2 刃 ． ARCO coating provides a superior wear and heat resistance. Solid Carbide Endmills ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Suitable for deep cutting due to the long neck design. ． Polish cutting edge provides stronger tip. ． The coating can change to SICO, the prices will differ. Radius Dia. CL EFF-L OAL Shank Flutes Order No. (R) (d) (L1) (L2) (L) (D) (F) EHBBC2 EHBRC2 EHBBC200702A 0.35R 0.7 0.7 2 50 4 2 EHBBC200704A 0.35R 0.7 0.7 4 50 4 2 EHBBC200708A 0.35R 0.7 0.7 8 50 4 2 EHBBC200710A 0.35R 0.7 0.7 10 50 4 2 EHBBC200712A 0.35R 0.7 0.7 12 50 4 2 EHBBC200802A 0.40R 0.8 0.8 2 50 4 2 d R EHBBC200804A 0.40R 0.8 0.8 4 50 4 2 EHBBC200806A 0.40R 0.8 0.8 6 50 4 2 L1 EHBBC200808A 0.40R 0.8 0.8 8 50 4 2 EHBBC200810A 0.40R 0.8 0.8 10 50 4 2 L2 EHBBC200812A 0.40R 0.8 0.8 12 50 4 2 EHBBC200904A 0.45R 0.9 0.9 4 50 4 2 EHBBC201002A 0.50R 1.0 1.0 2 50 4 2 EHBBC201003A 0.50R 1.0 1.0 3 50 4 2 L EHBBC201004A 0.50R 1.0 1.0 4 50 4 2 15° EHBBC201005A 0.50R 1.0 1.0 5 50 4 2 EHBBC201006A 0.50R 1.0 1.0 6 50 4 2 EHBBC201008A 0.50R 1.0 1.0 8 50 4 2 EHBBC201010A 0.50R 1.0 1.0 10 50 4 2 EHBBC201012A 0.50R 1.0 1.0 12 50 4 2 EHBBC201014A 0.50R 1.0 1.0 14 50 4 2 EHBBC201016A 0.50R 1.0 1.0 16 50 4 2 D EHBBC201018A 0.50R 1.0 1.0 18 50 4 2 EHBBC201020A 0.50R 1.0 1.0 20 50 4 2 EHBBC201022A 0.50R 1.0 1.0 22 60 4 2 EHBRC201004A 0.50R 1.0 1.0 4 50 6 2 EHBRC201006A 0.50R 1.0 1.0 6 50 6 2 EHBRC201008A 0.50R 1.0 1.0 8 50 6 2 EHBRC201010A 0.50R 1.0 1.0 10 50 6 2 EHBRC201012A 0.50R 1.0 1.0 12 50 6 2 65 Cutting conditions ( 建議切削參數表 ) : Table 019 d R Tolerance Ø ± 0.02 A039
