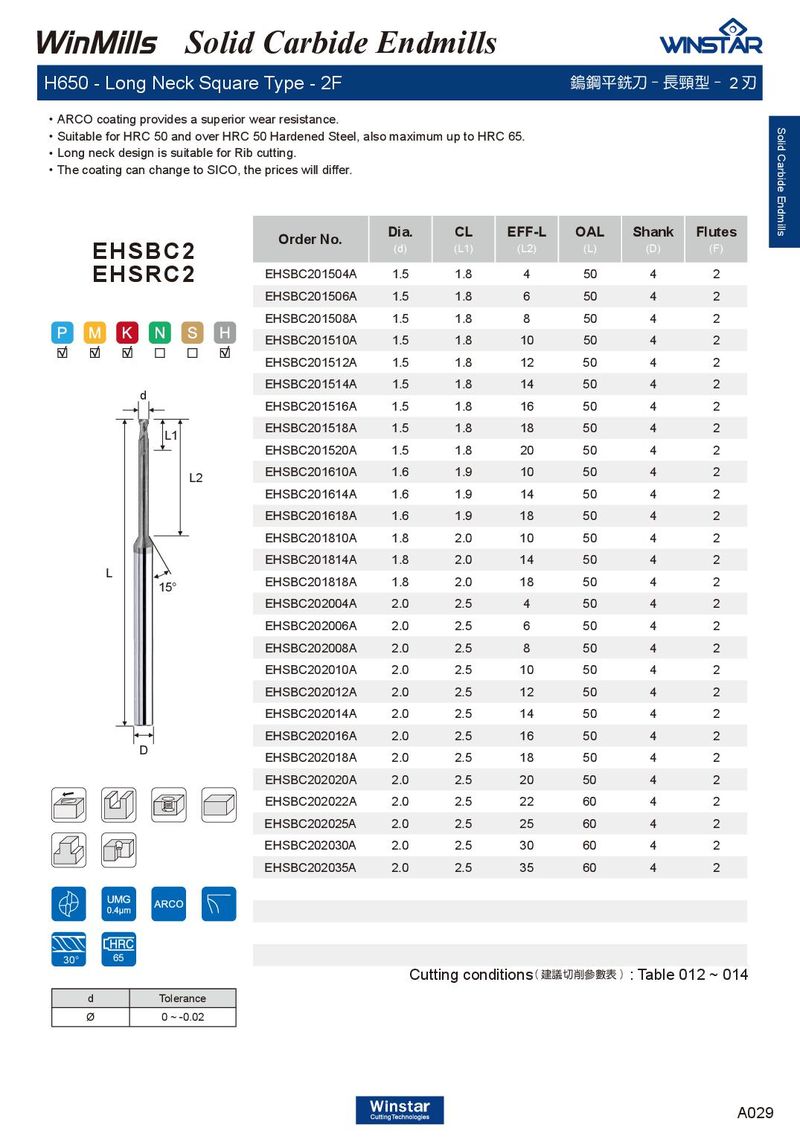

Solid Carbide Endmills H650 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2 刃 ． ARCO coating provides a superior wear resistance. Solid Carbide Endmills ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Long neck design is suitable for Rib cutting. ． The coating can change to SICO, the prices will differ. Dia. CL EFF-L OAL Shank Flutes Order No. (d) (L1) (L2) (L) (D) (F) EHSBC2 EHSRC2 EHSBC201504A 1.5 1.8 4 50 4 2 EHSBC201506A 1.5 1.8 6 50 4 2 EHSBC201508A 1.5 1.8 8 50 4 2 EHSBC201510A 1.5 1.8 10 50 4 2 EHSBC201512A 1.5 1.8 12 50 4 2 EHSBC201514A 1.5 1.8 14 50 4 2 d EHSBC201516A 1.5 1.8 16 50 4 2 EHSBC201518A 1.5 1.8 18 50 4 2 L1 EHSBC201520A 1.5 1.8 20 50 4 2 EHSBC201610A 1.6 1.9 10 50 4 2 L2 EHSBC201614A 1.6 1.9 14 50 4 2 EHSBC201618A 1.6 1.9 18 50 4 2 EHSBC201810A 1.8 2.0 10 50 4 2 EHSBC201814A 1.8 2.0 14 50 4 2 L EHSBC201818A 1.8 2.0 18 50 4 2 15° EHSBC202004A 2.0 2.5 4 50 4 2 EHSBC202006A 2.0 2.5 6 50 4 2 EHSBC202008A 2.0 2.5 8 50 4 2 EHSBC202010A 2.0 2.5 10 50 4 2 EHSBC202012A 2.0 2.5 12 50 4 2 EHSBC202014A 2.0 2.5 14 50 4 2 EHSBC202016A 2.0 2.5 16 50 4 2 D EHSBC202018A 2.0 2.5 18 50 4 2 EHSBC202020A 2.0 2.5 20 50 4 2 EHSBC202022A 2.0 2.5 22 60 4 2 EHSBC202025A 2.0 2.5 25 60 4 2 EHSBC202030A 2.0 2.5 30 60 4 2 EHSBC202035A 2.0 2.5 35 60 4 2 30° 65 Cutting conditions ( 建議切削參數表 ) : Table 012 ~ 014 d Tolerance Ø 0 ~ -0.02 A029
