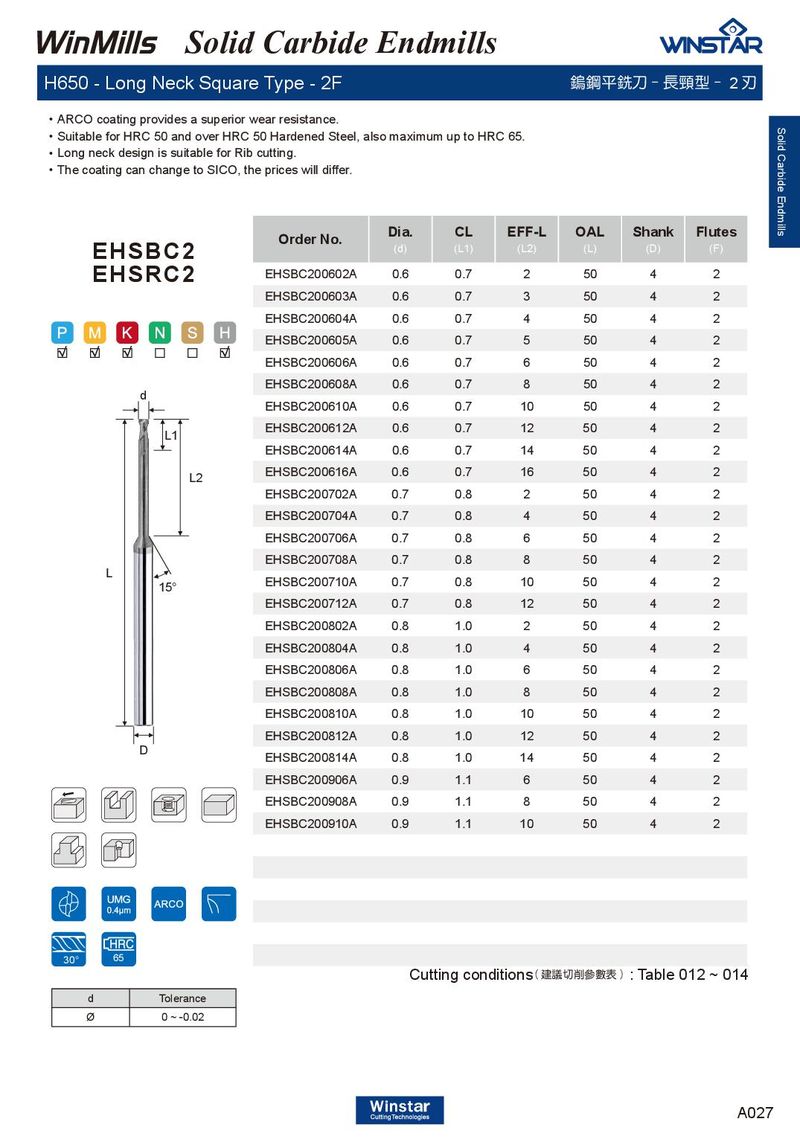

Solid Carbide Endmills H650 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2 刃 ． ARCO coating provides a superior wear resistance. Solid Carbide Endmills ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Long neck design is suitable for Rib cutting. ． The coating can change to SICO, the prices will differ. Dia. CL EFF-L OAL Shank Flutes Order No. (d) (L1) (L2) (L) (D) (F) EHSBC2 EHSRC2 EHSBC200602A 0.6 0.7 2 50 4 2 EHSBC200603A 0.6 0.7 3 50 4 2 EHSBC200604A 0.6 0.7 4 50 4 2 EHSBC200605A 0.6 0.7 5 50 4 2 EHSBC200606A 0.6 0.7 6 50 4 2 EHSBC200608A 0.6 0.7 8 50 4 2 d EHSBC200610A 0.6 0.7 10 50 4 2 EHSBC200612A 0.6 0.7 12 50 4 2 L1 EHSBC200614A 0.6 0.7 14 50 4 2 EHSBC200616A 0.6 0.7 16 50 4 2 L2 EHSBC200702A 0.7 0.8 2 50 4 2 EHSBC200704A 0.7 0.8 4 50 4 2 EHSBC200706A 0.7 0.8 6 50 4 2 EHSBC200708A 0.7 0.8 8 50 4 2 L EHSBC200710A 0.7 0.8 10 50 4 2 15° EHSBC200712A 0.7 0.8 12 50 4 2 EHSBC200802A 0.8 1.0 2 50 4 2 EHSBC200804A 0.8 1.0 4 50 4 2 EHSBC200806A 0.8 1.0 6 50 4 2 EHSBC200808A 0.8 1.0 8 50 4 2 EHSBC200810A 0.8 1.0 10 50 4 2 EHSBC200812A 0.8 1.0 12 50 4 2 D EHSBC200814A 0.8 1.0 14 50 4 2 EHSBC200906A 0.9 1.1 6 50 4 2 EHSBC200908A 0.9 1.1 8 50 4 2 EHSBC200910A 0.9 1.1 10 50 4 2 30° 65 Cutting conditions ( 建議切削參數表 ) : Table 012 ~ 014 d Tolerance Ø 0 ~ -0.02 A027
