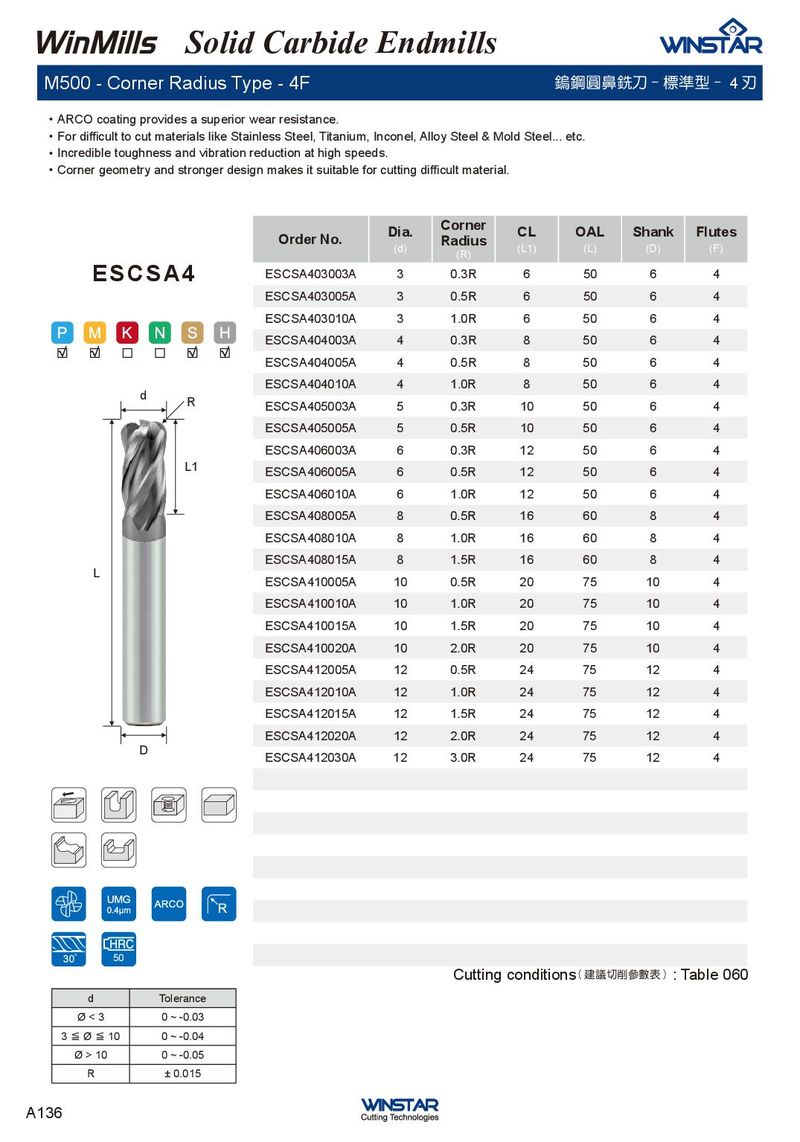

Solid Carbide Endmills M500 - Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 標準型 - 4 刃 ． ARCO coating provides a superior wear resistance. ． For difficult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc. ． Incredible toughness and vibration reduction at high speeds. ． Corner geometry and stronger design makes it suitable for cutting difficult material. Corner Dia. CL OAL Shank Flutes Order No. Radius (d) (L1) (L) (D) (F) (R) ESCSA4 ESCSA403003A 3 0.3R 6 50 6 4 ESCSA403005A 3 0.5R 6 50 6 4 ESCSA403010A 3 1.0R 6 50 6 4 ESCSA404003A 4 0.3R 8 50 6 4 ESCSA404005A 4 0.5R 8 50 6 4 ESCSA404010A 4 1.0R 8 50 6 4 d R ESCSA405003A 5 0.3R 10 50 6 4 ESCSA405005A 5 0.5R 10 50 6 4 ESCSA406003A 6 0.3R 12 50 6 4 L1 ESCSA406005A 6 0.5R 12 50 6 4 ESCSA406010A 6 1.0R 12 50 6 4 ESCSA408005A 8 0.5R 16 60 8 4 ESCSA408010A 8 1.0R 16 60 8 4 ESCSA408015A 8 1.5R 16 60 8 4 L ESCSA410005A 10 0.5R 20 75 10 4 ESCSA410010A 10 1.0R 20 75 10 4 ESCSA410015A 10 1.5R 20 75 10 4 ESCSA410020A 10 2.0R 20 75 10 4 ESCSA412005A 12 0.5R 24 75 12 4 ESCSA412010A 12 1.0R 24 75 12 4 ESCSA412015A 12 1.5R 24 75 12 4 ESCSA412020A 12 2.0R 24 75 12 4 D ESCSA412030A 12 3.0R 24 75 12 4 50 Cutting conditions ( 建議切削參數表 ) : Table 060 d Tolerance Ø < 3 0 ~ -0.03 3 ≦ Ø ≦ 10 0 ~ -0.04 Ø > 10 0 ~ -0.05 R ± 0.015 A136
