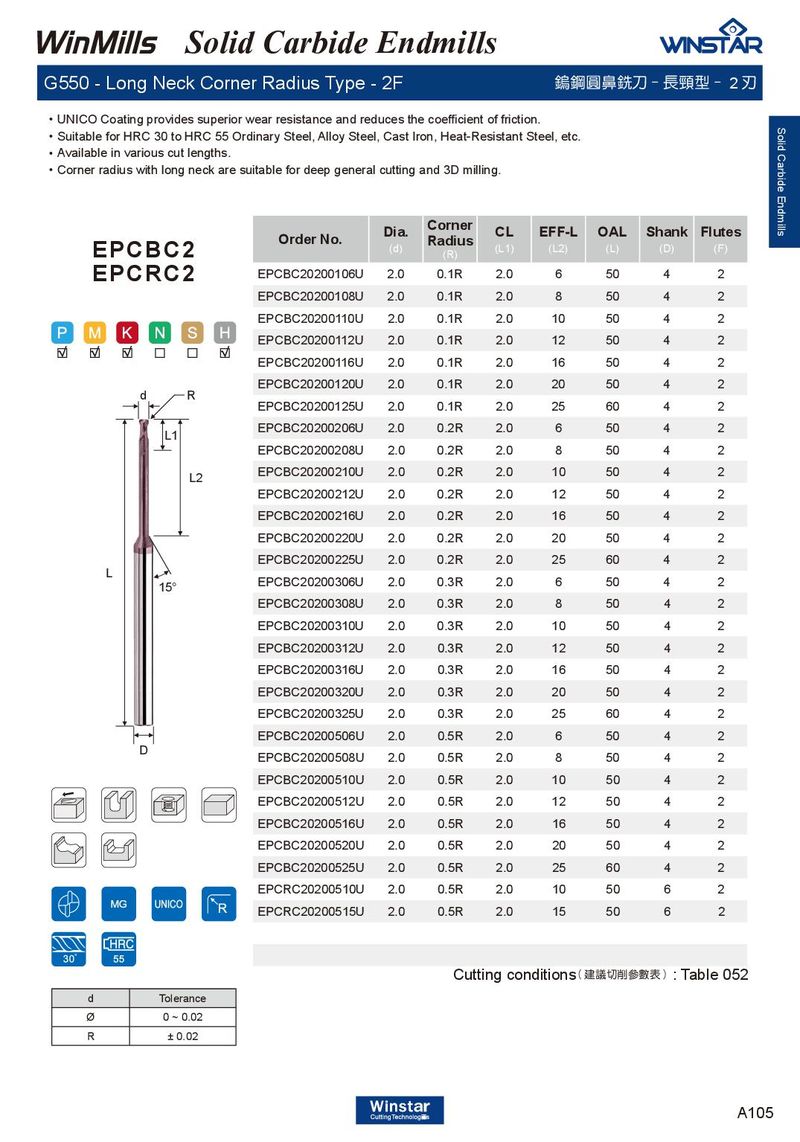

Solid Carbide Endmills G550 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2 刃 ． UNICO Coating provides superior wear resistance and reduces the coefficient of friction. Solid Carbide Endmills ． Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ． Available in various cut lengths. ． Corner radius with long neck are suitable for deep general cutting and 3D milling. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EPCBC2 (R) EPCRC2 EPCBC20200106U 2.0 0.1R 2.0 6 50 4 2 EPCBC20200108U 2.0 0.1R 2.0 8 50 4 2 EPCBC20200110U 2.0 0.1R 2.0 10 50 4 2 EPCBC20200112U 2.0 0.1R 2.0 12 50 4 2 EPCBC20200116U 2.0 0.1R 2.0 16 50 4 2 EPCBC20200120U 2.0 0.1R 2.0 20 50 4 2 d R EPCBC20200125U 2.0 0.1R 2.0 25 60 4 2 EPCBC20200206U 2.0 0.2R 2.0 6 50 4 2 L1 EPCBC20200208U 2.0 0.2R 2.0 8 50 4 2 EPCBC20200210U 2.0 0.2R 2.0 10 50 4 2 L2 EPCBC20200212U 2.0 0.2R 2.0 12 50 4 2 EPCBC20200216U 2.0 0.2R 2.0 16 50 4 2 EPCBC20200220U 2.0 0.2R 2.0 20 50 4 2 EPCBC20200225U 2.0 0.2R 2.0 25 60 4 2 L EPCBC20200306U 2.0 0.3R 2.0 6 50 4 2 15° EPCBC20200308U 2.0 0.3R 2.0 8 50 4 2 EPCBC20200310U 2.0 0.3R 2.0 10 50 4 2 EPCBC20200312U 2.0 0.3R 2.0 12 50 4 2 EPCBC20200316U 2.0 0.3R 2.0 16 50 4 2 EPCBC20200320U 2.0 0.3R 2.0 20 50 4 2 EPCBC20200325U 2.0 0.3R 2.0 25 60 4 2 EPCBC20200506U 2.0 0.5R 2.0 6 50 4 2 D EPCBC20200508U 2.0 0.5R 2.0 8 50 4 2 EPCBC20200510U 2.0 0.5R 2.0 10 50 4 2 EPCBC20200512U 2.0 0.5R 2.0 12 50 4 2 EPCBC20200516U 2.0 0.5R 2.0 16 50 4 2 EPCBC20200520U 2.0 0.5R 2.0 20 50 4 2 EPCBC20200525U 2.0 0.5R 2.0 25 60 4 2 EPCRC20200510U 2.0 0.5R 2.0 10 50 6 2 EPCRC20200515U 2.0 0.5R 2.0 15 50 6 2 Cutting conditions ( 建議切削參數表 ) : Table 052 d Tolerance Ø 0 ~ 0.02 R ± 0.02 A105
