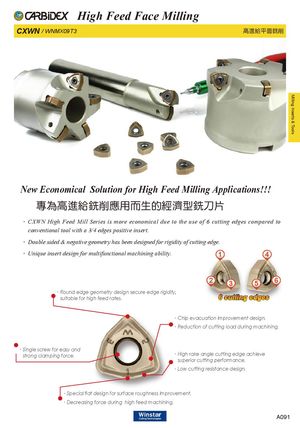

Milling Inserts & Tools High Feed Face Milling CXWN / WNMX09T3 高進給平面銑削 New Economical Solution for High Feed Milling Applications!!! 專為高進給銑削應用而生的經濟型銑刀片 ．CXWN High Feed Mill Series is more economical due to the use of 6 cutting edges compared to 　conventional tool with a 3/4 edges positive insert. ．Double sided & negative geometry has been designed for rigidity of cutting edge. ．Unique insert design for multifunctional machining ability. 1 4 2 3 5 6 ．Round edge geometry design secure edge rigidity, 　suitable for high feed rates. 6 cutting edges ．Chip evacuation improvement design. ．Reduction of cutting load during machining. ．Single screw for easy and 　strong clamping force. ．High rake angle cutting edge achieve 　superior cutting performance. ．Low cutting resistance design. ．Special flat design for surface roughness improvement. ．Decreasing force during high feed machining. A091
