Каталог Carbidex сменные пластины 2020 - страница 89

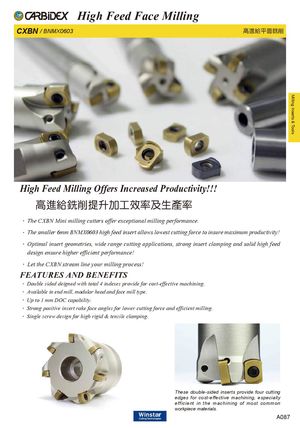

Milling Inserts & Tools High Feed Face Milling CXBN / BNMX0603 高進給平面銑削 High Feed Milling Offers Increased Productivity!!! 高進給銑削提升加工效率及生產率 ．The CXBN Mini milling cutters offer exceptional milling performance. ．The smaller 6mm BNMX0603 high feed insert allows lowest cutting force to insure maximum productivity! ．Optimal insert geometries, wide range cutting applications, strong insert clamping and solid high feed 　design ensure higher efficient performance! ．Let the CXBN stream line your milling process! FEATURES AND BENEFITS ．Double sided deigned with total 4 indexes provide for cost-effective machining. ．Available in end mill, modular head and face mill type. ．Up to 1 mm DOC capability. ．Strong positive insert rake face angles for lower cutting force and efficient milling. ．Single screw design for high rigid & tensile clamping. These double-sided inserts provide four cutting edges for cost-effective machining, especially efficient in the machining of most common workpiece materials. A087
