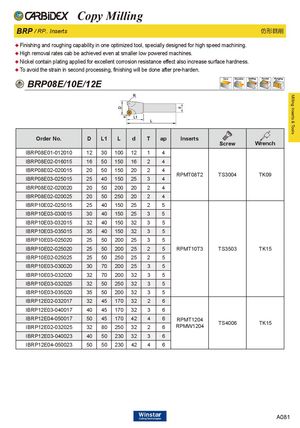

Каталог Carbidex сменные пластины 2020 - страница 83

Milling Inserts & Tools Copy Milling BRP / RP.. Inserts 仿形銑削 ♦ Finishing and roughing capability in one optimized tool, specially designed for high speed machining. ♦ High removal rates cab be achieved even at smaller low powered machines. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. BRP08E/10E/12E ap Order No. D L1 L d T ap Inserts Screw Wrench IBRP08E01-012010 12 30 100 12 1 4 IBRP08E02-016015 16 50 150 16 2 4 IBRP08E02-020015 20 50 150 20 2 4 RPMT08T2 TS3004 TK09 IBRP08E03-025015 25 40 150 25 3 4 IBRP08E02-020020 20 50 200 20 2 4 IBRP08E02-020025 20 50 250 20 2 4 IBRP10E02-025015 25 40 150 25 2 5 IBRP10E03-030015 30 40 150 25 3 5 IBRP10E03-032015 32 40 150 32 3 5 IBRP10E03-035015 35 40 150 32 3 5 IBRP10E03-025020 25 50 200 25 3 5 IBRP10E02-025020 25 50 200 25 2 5 RPMT10T3 TS3503 TK15 IBRP10E02-025025 25 50 250 25 2 5 IBRP10E03-030020 30 70 200 25 3 5 IBRP10E03-032020 32 70 200 32 3 5 IBRP10E03-032025 32 50 250 32 3 5 IBRP10E03-035020 35 50 200 32 3 5 IBRP12E02-032017 32 45 170 32 2 6 IBRP12E03-040017 40 45 170 32 3 6 IBRP12E04-050017IBRP12E02-0320255045170 42 4 6 RPMT120432802503226RPMW1204TS4006TK15 IBRP12E03-040023 40 50 230 32 3 6 IBRP12E04-050023 50 50 230 42 4 6 A081
