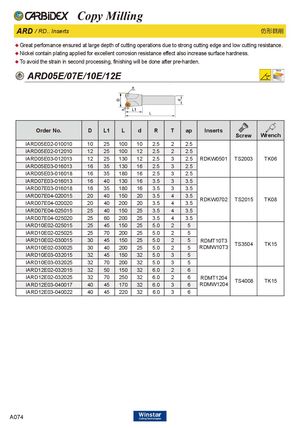

Каталог Carbidex сменные пластины 2020 - страница 76

Copy Milling ARD / RD.. Inserts 仿形銑削 ♦ Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. ARD05E/07E/10E/12E ap Order No. D L1 L d R T ap Inserts Screw Wrench IARD05E02-010010 10 25 100 10 2.5 2 2.5 IARD05E02-012010 12 25 100 12 2.5 2 2.5 IARD05E03-012013 12 25 130 12 2.5 3 2.5 RDKW0501 TS2003 TK06 IARD05E03-016013 16 35 130 16 2.5 3 2.5 IARD05E03-016018 16 35 180 16 2.5 3 2.5 IARD07E03-016013 16 40 130 16 3.5 3 3.5 IARD07E03-016018 16 35 180 16 3.5 3 3.5 IARD07E04-020015IARD07E04-020020202040150 20 3.540200203.5443.53.5RDKW0702 TS2015 TK08 IARD07E04-025015 25 40 150 25 3.5 4 3.5 IARD07E04-025020 25 60 200 25 3.5 4 3.5 IARD10E02-025015 25 45 150 25 5.0 2 5 IARD10E02-025025 25 70 200 25 5.0 2 5 IARD10E02-030015IARD10E02-0300253045150 25 5.0 23040200255.0255RDMT10T3RDMW10T3TS3504TK15 IARD10E03-032015 32 45 150 32 5.0 3 5 IARD10E03-032025 32 70 200 32 5.0 3 5 IARD12E02-032015 32 50 150 32 6.0 2 6 IARD12E02-032025IARD12E03-0400173270250 32 6.0 24045170326.0366RDMT1204RDMW1204TS4008TK15 IARD12E03-040022 40 45 220 32 6.0 3 6 A074
