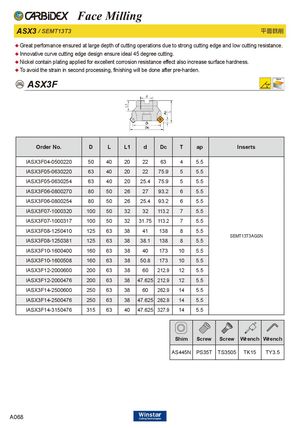

Каталог Carbidex сменные пластины 2020 - страница 70

Face Milling ASX3 / SEMT13T3 平面銑削 ♦ Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance. ♦ Innovative curve cutting edge design ensure ideal 45 degree cutting. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. ASX3F Order No. D L L1 d Dc T ap Inserts IASX3F04-0500220 50 40 20 22 63 4 5.5 IASX3F05-0630220 63 40 20 22 75.9 5 5.5 IASX3F05-0630254 63 40 20 25.4 75.9 5 5.5 IASX3F06-0800270 80 50 26 27 93.2 6 5.5 IASX3F06-0800254 80 50 26 25.4 93.2 6 5.5 IASX3F07-1000320 100 50 32 32 113.2 7 5.5 IASX3F07-1000317 100 50 32 31.75 113.2 7 5.5 IASX3F08-1250410 125 63 38 41 138 8 5.5 SEMT13T3AGSN IASX3F08-1250381 125 63 38 38.1 138 8 5.5 IASX3F10-1600400 160 63 38 40 173 10 5.5 IASX3F10-1600508 160 63 38 50.8 173 10 5.5 IASX3F12-2000600 200 63 38 60 212.9 12 5.5 IASX3F12-2000476 200 63 38 47.625 212.9 12 5.5 IASX3F14-2500600 250 63 38 60 262.9 14 5.5 IASX3F14-2500476 250 63 38 47.625 262.9 14 5.5 IASX3F14-3150476 315 63 40 47.625 327.9 14 5.5 Shim Screw Screw Wrench Wrench AS445N PS35T TS3505 TK15 TY3.5 A068
