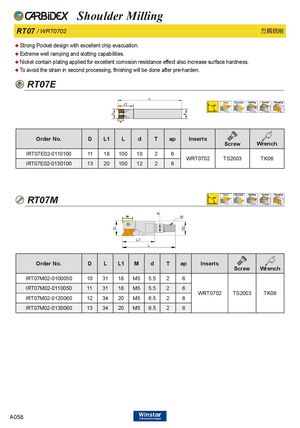

Shoulder Milling RT07 / WRT0702 方肩銑削 ♦ Strong Pocket design with excellent chip evacuation. ♦ Extreme well ramping and slotting capabilities. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. RT07E ap Order No. D L1 L d T ap Inserts Screw Wrench IRT07E02-0110100 11 18 100 10 2 6 WRT0702 TS2003 TK06 IRT07E02-0130100 13 20 100 12 2 6 RT07M ap Order No. D L L1 M d T ap Inserts Screw Wrench IRT07M02-0100050 10 31 18 M5 5.5 2 6 IRT07M02-0110050 11 31 18 M5 5.5 2 6 WRT0702 TS2003 TK06 IRT07M02-0120060 12 34 20 M5 6.5 2 6 IRT07M02-0130060 13 34 20 M5 6.5 2 6 A058
