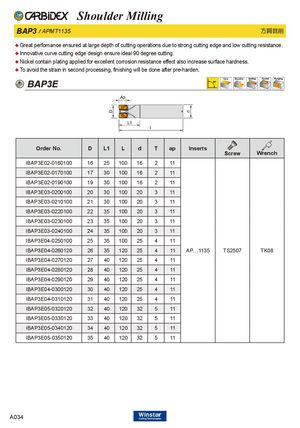

Shoulder Milling BAP3 / APMT1135 方肩銑削 ♦ Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance. ♦ Innovative curve cutting edge design ensure ideal 90 degree cutting. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. BAP3E Order No. D L1 L d T ap Inserts Screw Wrench IBAP3E02-0160100 16 25 100 16 2 11 IBAP3E02-0170100 17 30 100 16 2 11 IBAP3E02-0190100 19 30 100 16 2 11 IBAP3E03-0200100 20 30 100 20 3 11 IBAP3E03-0210100 21 30 100 20 3 11 IBAP3E03-0220100 22 35 100 20 3 11 IBAP3E03-0230100 23 35 100 20 3 11 IBAP3E03-0240100 24 35 100 20 3 11 IBAP3E04-0250100 25 35 100 25 4 11 IBAP3E04-0260120 26 35 120 25 4 11 AP…1135 TS2507 TK08 IBAP3E04-0270120 27 40 120 25 4 11 IBAP3E04-0280120 28 40 120 25 4 11 IBAP3E04-0290120 29 40 120 25 4 11 IBAP3E04-0300120 30 40 120 25 4 11 IBAP3E04-0310120 31 40 120 25 4 11 IBAP3E05-0320120 32 40 120 32 5 11 IBAP3E05-0330120 33 40 120 32 5 11 IBAP3E05-0340120 34 40 120 32 5 11 IBAP3E05-0350120 35 40 120 32 5 11 A034
