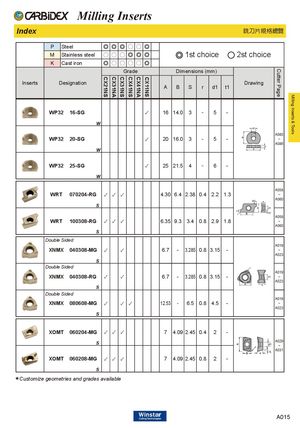

CX21NS CX31NA CX31NS CX41NS CX41NA CX11NS Cutter Page Milling Inserts & Tools Milling Inserts Index 銑刀片規格總覽 P Steel ◎ ◎ ◎ ○ ○ ◎ M Stainless steel ○ ○ ○ ◎ ◎ ◎ 1st choice 2st choice K Cast iron ◎ ○ ○ ○ ○ ◎ Grade Dimensions (mm) Inserts Designation Drawing A B S r d1 t1 WP32 16-SG ✓ 16 14.0 3 - 5 - W A085 WP32 20-SG ✓ 20 16.0 3 - 5 - ~ A086 W WP32 25-SG ✓ 25 21.5 4 - 6 - W A058 WRT 070204-RG ✓ ✓ ✓ 4.30 6.4 2.38 0.4 2.2 1.3 ~ 90° s A060 S d1 t1 r 15° A058 WRT 100308-RG ✓ ✓ ✓ 6.35 9.3 3.4 0.8 2.9 1.8 ~ A060 S Double Sided A019 XNMX 040308-MG ✓ ✓ 6.7 - 3.285 0.8 3.15 - ~ A023 S Double Sided r A019 XNMX 040308-RG ✓ ✓ 6.7 - 3.285 0.8 3.15 - d1 ~ A023 S s Double Sided A019 XNMX 080608-MG ✓ ✓ ✓ 12.53 - 6.5 0.8 4.5 - ~ A023 S XOMT 060204-MG ✓ ✓ ✓ 7 4.09 2.45 0.4 2 - S A029~ A031 XOMT 060208-MG ✓ ✓ ✓ 7 4.09 2.45 0.8 2 - S *Customize geometries and grades available A015
