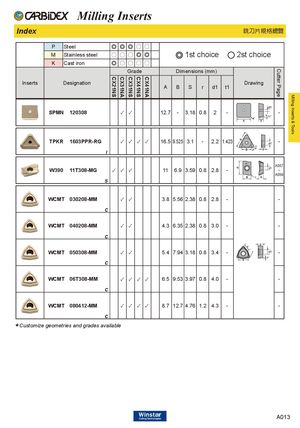

Каталог Carbidex сменные пластины 2020 - страница 15

CX21NS CX31NA CX31NS CX41NS CX41NA Cutter Page Milling Inserts & Tools Milling Inserts Index 銑刀片規格總覽 P Steel ◎ ◎ ◎ ○ ○ M Stainless steel ○ ○ ○ ◎ ◎ 1st choice 2st choice K Cast iron ◎ ○ ○ ○ ○ Grade Dimensions (mm) Inserts Designation Drawing A B S r d1 t1 SPMN 120308 ✓ ✓ 12.7 - 3.18 0.8 2 - - TPKR 1603PPR-RG ✓ ✓ ✓ ✓ 16.5 9.525 3.1 - 2.2 1.423 - t1 I A057 W390 11T308-MG ✓ ✓ ✓ 11 6.9 3.59 0.8 2.8 - ~ A059 S WCMT 030208-MM ✓ ✓ 3.8 5.56 2.38 0.8 2.8 - - C WCMT 040208-MM ✓ ✓ 4.3 6.35 2.38 0.8 3.0 - - C WCMT 050308-MM ✓ ✓ 5.4 7.94 3.18 0.8 3.4 - - C WCMT 06T308-MM ✓ ✓ ✓ ✓ 6.5 9.53 3.97 0.8 4.0 - - C WCMT 080412-MM ✓ ✓ ✓ ✓ 8.7 12.7 4.76 1.2 4.3 - - C *Customize geometries and grades available A013
