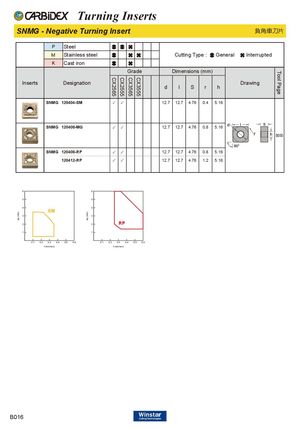

CX2565 CX2555 CX3565 CX3555 Tool Page ap (mm) ap (mm) Turning Inserts SNMG - Negative Turning Insert 負角車刀片 P Steel M Stainless steel Cutting Type : General Interrupted K Cast iron Grade Dimensions (mm) Inserts Designation Drawing d l S r h SNMG 120404-SM ✓ ✓ 12.7 12.7 4.76 0.4 5.16 SNMG 120408-MG ✓ ✓ 12.7 12.7 4.76 0.8 5.16 B050 SNMG 120408-RP ✓ ✓ 12.7 12.7 4.76 0.8 5.16 120412-RP ✓ ✓ 12.7 12.7 4.76 1.2 5.16 6 6 5 5 4 4 SM 3 3 2 2 RP 1 1 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 f (mm/rev) f (mm/rev) B016
