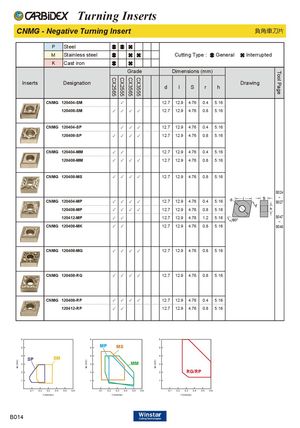

CX2565 CX2555 CX3565 CX3555 Tool Page Turning Inserts CNMG - Negative Turning Insert 負角車刀片 P Steel M Stainless steel Cutting Type : General Interrupted K Cast iron Grade Dimensions (mm) Inserts Designation Drawing d l S r h CNMG 120404-SM ✓ 12.7 12.9 4.76 0.4 5.16 120408-SM ✓ ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 CNMG 120404-SP ✓ ✓ ✓ 12.7 12.9 4.76 0.4 5.16 120408-SP ✓ ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 CNMG 120404-MM ✓ ✓ 12.7 12.9 4.76 0.4 5.16 120408-MM ✓ ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 CNMG 120408-MS ✓ ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 B024 ~ CNMG 120404-MP ✓ ✓ ✓ ✓ 12.7 12.9 4.76 0.4 5.16 B027 120408-MP ✓ ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 120412-MP ✓ ✓ 12.7 12.9 4.76 1.2 5.16 B047 ~ CNMG 120408-MK ✓ ✓ 12.7 12.9 4.76 0.8 5.16 B048 CNMG 120408-MG ✓ ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 CNMG 120408-RG ✓ ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 CNMG 120408-RP ✓ ✓ ✓ ✓ 12.7 12.9 4.76 0.4 5.16 120412-RP ✓ ✓ 12.7 12.9 4.76 0.8 5.16 6 6 6 5 5 MP MS 5 4 SP SM 4 4 3 3 MM 3 2 2 2 RG/RP 1 1 1 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 f (mm/rev) f (mm/rev) f (mm/rev) B014 ap (mm) ap (mm) ap (mm)
