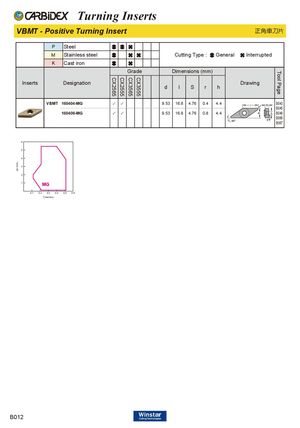

Каталог Carbidex сменные пластины 2020 - страница 126

CX2565 CX2555 CX3565 CX3555 Tool Page ap (mm) Turning Inserts VBMT - Positive Turning Insert 正角車刀片 P Steel M Stainless steel Cutting Type : General Interrupted K Cast iron Grade Dimensions (mm) Inserts Designation Drawing d l S r h VBMT 160404-MG ✓ ✓ 9.53 16.6 4.76 0.4 4.4 B043 B045 160408-MG ✓ ✓ 9.53 16.6 4.76 0.8 4.4 B046 B066 B067 6 5 4 3 2 1 MG 0.1 0.2 0.3 0.4 0.5 0.6 f (mm/rev) B012
