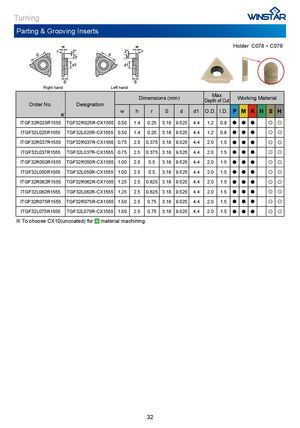

Turning Parting & Grooving Inserts Holder C078 ~ C079 Right hand Left hand Order No. Designation Dimensions (mm) MaxDepth of Cut Working Material K w h r S d d1 O.D. I.D. P M K N S H ITGF32R025R1555 TGF32R025R-CX1555 0.50 1.4 0.25 3.18 9.525 4.4 1.2 0.8 ● ● ● ○ ○ ITGF32L025R1555 TGF32L025R-CX1555 0.50 1.4 0.25 3.18 9.525 4.4 1.2 0.8 ● ● ● ○ ○ ITGF32R037R1555 TGF32R037R-CX1555 0.75 2.5 0.375 3.18 9.525 4.4 2.0 1.5 ● ● ● ○ ○ ITGF32L037R1555 TGF32L037R-CX1555 0.75 2.5 0.375 3.18 9.525 4.4 2.0 1.5 ● ● ● ○ ○ ITGF32R050R1555 TGF32R050R-CX1555 1.00 2.5 0.5 3.18 9.525 4.4 2.0 1.5 ● ● ● ○ ○ ITGF32L050R1555 TGF32L050R-CX1555 1.00 2.5 0.5 3.18 9.525 4.4 2.0 1.5 ● ● ● ○ ○ ITGF32R062R1555 TGF32R062R-CX1555 1.25 2.5 0.625 3.18 9.525 4.4 2.0 1.5 ● ● ● ○ ○ ITGF32L062R1555 TGF32L062R-CX1555 1.25 2.5 0.625 3.18 9.525 4.4 2.0 1.5 ● ● ● ○ ○ ITGF32R075R1555 TGF32R075R-CX1555 1.50 2.5 0.75 3.18 9.525 4.4 2.0 1.5 ● ● ● ○ ○ ITGF32L075R1555 TGF32L075R-CX1555 1.50 2.5 0.75 3.18 9.525 4.4 2.0 1.5 ● ● ● ○ ○ ※ To choose CX10(uncoated) for material machining. 32
