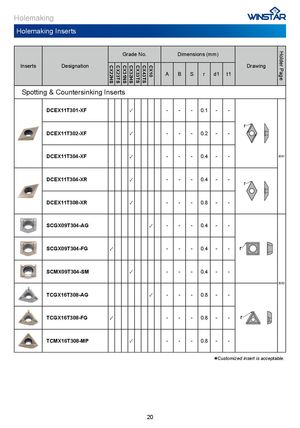

CX22HS CX23TS CX31NS CX32HS CX33TS CX43TS CX10 Holder Page Holemaking Holemaking Inserts Grade No. Dimensions (mm) Inserts Designation Drawing A B S r d1 t1 Spotting & Countersinking Inserts DCEX11T301-XF ✓ - - - 0.1 - - DCEX11T302-XF ✓ - - - 0.2 - - DCEX11T304-XF ✓ - - - 0.4 - - B081 DCEX11T304-XR ✓ - - - 0.4 - - DCEX11T308-XR ✓ - - - 0.8 - - SCGX09T304-AG ✓ - - - 0.4 - - SCGX09T304-FG ✓ - - - 0.4 - - SCMX09T304-SM ✓ - - - 0.4 - - B082 TCGX16T308-AG ✓ - - - 0.8 - - TCGX16T308-FG ✓ - - - 0.8 - - TCMX16T308-MP ✓ - - - 0.8 - - *Customized insert is acceptable. 20
