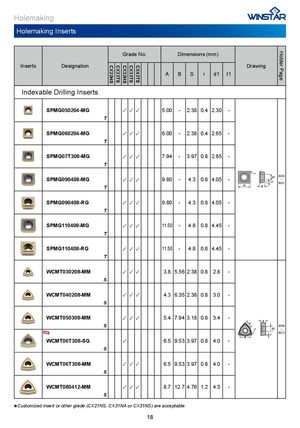

Брошюра Winstar пластины 2021 - страница 21

CX22HS CX23TS CX32HS CX33TS CX43TS Holder Page Holemaking Holemaking Inserts Grade No. Dimensions (mm) Inserts Designation Drawing A B S r d1 t1 Indexable Drilling Inserts SPMG050204-MG ✓ ✓ ✓ 5.00 - 2.38 0.4 2.30 - T SPMG060204-MG ✓ ✓ ✓ 6.00 - 2.38 0.4 2.65 - T SPMG07T308-MG ✓ ✓ ✓ 7.94 - 3.97 0.8 2.85 - T B055 SPMG090408-MG ✓ ✓ ✓ 9.80 - 4.3 0.8 4.05 - ~11°B061 T SPMG090408-RG ✓ ✓ ✓ 9.80 - 4.3 0.8 4.05 - T SPMG110408-MG ✓ ✓ ✓ 11.50 - 4.8 0.8 4.45 - T SPMG110408-RG ✓ ✓ ✓ 11.50 - 4.8 0.8 4.45 - T WCMT030208-MM ✓ ✓ ✓ 3.8 5.56 2.38 0.8 2.8 - S WCMT040208-MM ✓ ✓ ✓ 4.3 6.35 2.38 0.8 3.0 - S WCMT050308-MM ✓ ✓ ✓ 5.4 7.94 3.18 0.8 3.4 - S B066 ~ B072 WCMT06T308-SG ✓ 6.5 9.53 3.97 0.8 4.0 - S WCMT06T308-MM ✓ ✓ ✓ 6.5 9.53 3.97 0.8 4.0 - S WCMT080412-MM ✓ ✓ ✓ 8.7 12.7 4.76 1.2 4.3 - S *Customized insert or other grade (CX21NS, CX31NA or CX31NS) are acceptable. 18
