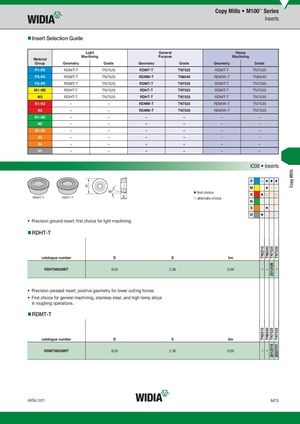

TN2510–TN2510– TN6540–TN6540– TN75252012426TN75252012518 TN7535–TN75352020757 Copy Mills Copy Mills • M100™ Series Inserts „Insert Selection Guide Light General Heavy Machining Purpose Machining Material Group Geometry Grade Geometry Grade Geometry Grade P1–P2 RDMT-T TN7525 RDMT-T TN7525 RDMT-T TN7535 P3–P4 RDMT-T TN7525 RDMW-T TN6540 RDMW-T TN6540 P5–P6 RDMT-T TN7525 RDMT-T TN7535 RDMT-T TN7535 M1–M2 RDHT-T TN7525 RDHT-T TN7525 RDMT-T TN7535 M3 RDHT-T TN7525 RDHT-T TN7525 RDMT-T TN7535 K1–K2 – – RDMW-T TN7535 RDMW-T TN7535 K3 – – RDMW-T TN7535 RDMW-T TN7535 N1–N2 – – – – – – N3 – – – – – – S1–S2 – – – – – – S3 – – – – – – S4 – – – – – – H1 – – – – – – iC08 • Inserts P ࠗ ⅷ ⅷ ⅷ M ⅷ ࠗ ࠗ ⅷ first choice K ⅷ ࠗ ࠗ RDMT-T RDHT-T ࠗ alternate choice N S ⅷ H ⅷ • Precision ground insert; first choice for light machining. „RDHT-T catalogue number D S hm RDHT0802M0T 8,00 2,38 0,09 • Precision pressed insert; positive geometry for lower cutting forces. • First choice for general machining, stainless steel, and high-temp alloys in roughing operations. „RDMT-T catalogue number D S hm RDMT0802M0T 8,00 2,38 0,09 widia.com M75
