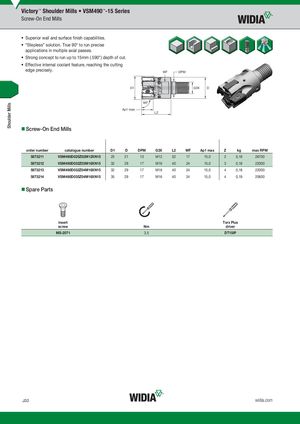

Shoulder Mills Victory™ Shoulder Mills • VSM490™-15 Series Screw-On End Mills • Superior wall and surface finish capabilities. • “Stepless” solution. True 90° to run precise applications in multiple axial passes. • Strong concept to run up to 15mm (.590") depth of cut. • Effective internal coolant feature, reaching the cutting edge precisely. WF DPM D1 G3X D 90º Ap1 max L2 „Screw-On End Mills order number catalogue number D1 D DPM G3X L2 WF Ap1 max Z kg max RPM 5873211 VSM490D025Z02M12XN15 25 21 13 M12 32 17 15,0 2 0,18 26700 5873212 VSM490D032Z03M16XN15 32 29 17 M16 40 24 15,0 3 0,18 22000 5873213 VSM490D032Z04M16XN15 32 29 17 M16 40 24 15,0 4 0,18 22000 5873214 VSM490D035Z04M16XN15 35 29 17 M16 40 24 15,0 4 0,19 20600 „Spare Parts insert Torx Plus screw Nm driver MS-2071 3,5 DT15IP J32 widia.com
