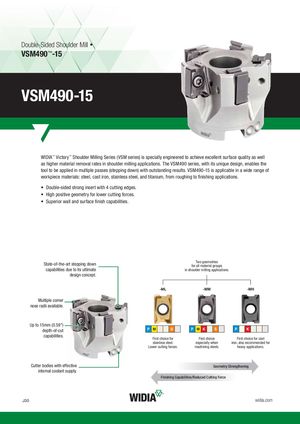

Double-Sided Shoulder Mill • VSM490™-15 VSM490-15 WIDIA™ Victory™ Shoulder Milling Series (VSM series) is specially engineered to achieve excellent surface quality as well as higher material removal rates in shoulder milling applications. The VSM490 series, with its unique design, enables the tool to be applied in multiple passes (stepping down) with outstanding results. VSM490-15 is applicable in a wide range of workpiece materials: steel, cast iron, stainless steel, and titanium, from roughing to finishing applications. • Double-sided strong insert with 4 cutting edges. • High positive geometry for lower cutting forces. • Superior wall and surface finish capabilities. State-of-the-art stepping down Two geometriesfor all material groups capabilities due to its ultimate in shoulder milling applications. design concept. -ML -MM -MH Multiple corner nose radii available. Up to 15mm (0.59") depth-of-cut P M S P M K S P K capabilities. First choice for First choice First choice for cast stainless steel. especially when iron, also recommended for Lower cutting forces. machining steels. heavy applications. Cutter bodies with effective Geometry Strengthening internal coolant supply. Finishing Capabilities/Reduced Cutting Force J30 widia.com
