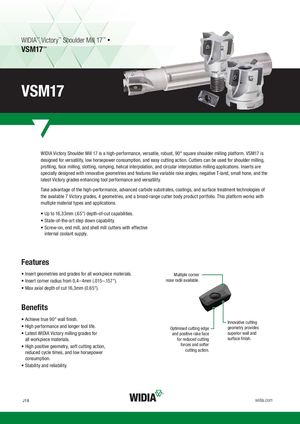

WIDIA™ Victory™ Shoulder Mill 17™ • VSM17™ VSM17 WIDIA Victory Shoulder Mill 17 is a high-performance, versatile, robust, 90° square shoulder milling platform. VSM17 is designed for versatility, low horsepower consumption, and easy cutting action. Cutters can be used for shoulder milling, profiling, face milling, slotting, ramping, helical interpolation, and circular interpolation milling applications. Inserts are specially designed with innovative geometries and features like variable rake angles, negative T-land, small hone, and the latest Victory grades enhancing tool performance and versatility. Take advantage of the high-performance, advanced carbide substrates, coatings, and surface treatment technologies of the available 7 Victory grades, 4 geometries, and a broad-range cutter body product portfolio. This platform works with multiple material types and applications. • Up to 16,33mm (.65") depth-of-cut capabilities. • State-of-the-art step down capability. • Screw-on, end mill, and shell mill cutters with effective internal coolant supply. Features • Insert geometries and grades for all workpiece materials. Multiple corner • Insert corner radius from 0,4–4mm (.015–.157"). nose radii available. • Max axial depth of cut 16,3mm (0.65"). Benefits • Achieve true 90° wall finish. Innovative cutting • High performance and longer tool life. Optimised cutting edge geometry provides • Latest WIDIA Victory milling grades for and positive rake face superior wall and all workpiece materials. for reduced cutting surface finish. • High positive geometry, soft cutting action, forces and softer reduced cycle times, and low horsepower cutting action. consumption. • Stability and reliability. J18 widia.com
