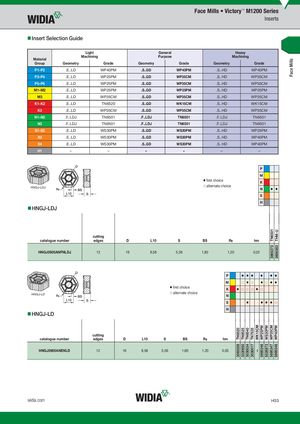

TN65203093559 TN65253330950 TN65403030034 TN75353030017 WK15CM— WP25PM5895346 WS30PM5528973 TN65013865373WP35CM5895347 THM-U3606383WP40PM5895348 Face Mills Face Mills • Victory™ M1200 Series Inserts Insert Selection Guide Light General Heavy Machining Purpose Machining Material Group Geometry Grade Geometry Grade Geometry Grade P1–P2 .E..LD WP40PM .S..GD WP40PM .S..HD WP40PM P3–P4 .E..LD WP25PM .S..GD WP35CM .S..HD WP35CM P5–P6 .E..LD WP25PM .S..GD WP35CM .S..HD WP35CM M1–M2 .E..LD WP25PM .S..GD WP25PM .S..HD WP25PM M3 .E..LD WP35CM .S..GD WP35CM .S..HD WP35CM K1–K2 .E..LD TN6520 .S..GD WK15CM .S..HD WK15CM K3 .E..LD WP35CM .S..GD WP35CM .S..HD WP35CM N1–N2 .F..LDJ TN6501 .F..LDJ TN6501 .F..LDJ TN6501 N3 .F..LDJ TN6501 .F..LDJ TN6501 .F..LDJ TN6501 S1–S2 .E..LD WS30PM .S..GD WS30PM .S..HD WP25PM S3 .E..LD WS30PM .S..GD WS30PM .S..HD WP40PM S4 .E..LD WS30PM .S..GD WS30PM .S..HD WP40PM H1 – – – – – – P M ⅷ first choice K HNGJ-LDJ ࠗ alternate choice N ⅷ ⅷ S H HNGJ-LDJ cutting catalogue number edges D L10 S BS R¡ hm HNGJ0905ANFNLDJ 12 16 8,58 5,56 1,80 1,20 0,02 P ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ M ࠗ ⅷ ࠗ ⅷ ࠗ ⅷ ⅷ ⅷ first choice K ⅷ ࠗ ࠗ ࠗ ⅷ ࠗ HNGJ-LD ࠗ alternate choice N S ⅷ ⅷ ⅷ ⅷ ࠗ H ࠗ HNGJ-LD cutting catalogue number edges D L10 S BS R¡ hm HNGJ0905ANENLD 12 16 8,58 5,56 1,80 1,20 0,05 widia.com H33
