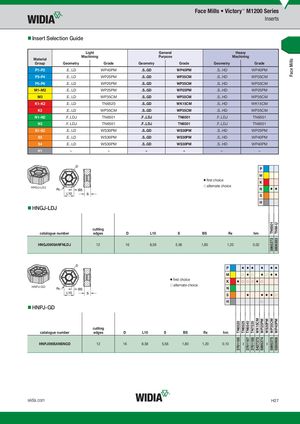

TN65203761185 TN6525— TN65403761187 TN75353761188 WK15CM5427372 WP25PM5895374 WS30PM— TN65013865373WP35CM5895375 THM-U3606383WP40PM5550908 Face Mills Face Mills • Victory™ M1200 Series Inserts „Insert Selection Guide Light General Heavy Machining Purpose Machining Material Group Geometry Grade Geometry Grade Geometry Grade P1–P2 .E..LD WP40PM .S..GD WP40PM .S..HD WP40PM P3–P4 .E..LD WP25PM .S..GD WP35CM .S..HD WP35CM P5–P6 .E..LD WP25PM .S..GD WP35CM .S..HD WP35CM M1–M2 .E..LD WP25PM .S..GD WP25PM .S..HD WP25PM M3 .E..LD WP35CM .S..GD WP35CM .S..HD WP35CM K1–K2 .E..LD TN6520 .S..GD WK15CM .S..HD WK15CM K3 .E..LD WP35CM .S..GD WP35CM .S..HD WP35CM N1–N2 .F..LDJ TN6501 .F..LDJ TN6501 .F..LDJ TN6501 N3 .F..LDJ TN6501 .F..LDJ TN6501 .F..LDJ TN6501 S1–S2 .E..LD WS30PM .S..GD WS30PM .S..HD WP25PM S3 .E..LD WS30PM .S..GD WS30PM .S..HD WP40PM S4 .E..LD WS30PM .S..GD WS30PM .S..HD WP40PM H1 – – – – – – P M ⅷ first choice K HNGJ-LDJ ࠗ alternate choice N ⅷ ⅷ S H „HNGJ-LDJ cutting catalogue number edges D L10 S BS R¡ hm HNGJ0905ANFNLDJ 12 16 8,58 5,56 1,80 1,20 0,02 P ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ M ࠗ ⅷ ࠗ ⅷ ࠗ ⅷ ⅷ ⅷ first choice K ⅷ ࠗ ࠗ ࠗ ⅷ ࠗ HNPJ-GD ࠗ alternate choice N S ⅷ ⅷ ⅷ ⅷ ࠗ H ࠗ „HNPJ-GD cutting catalogue number edges D L10 S BS R¡ hm HNPJ0905ANSNGD 12 16 8,58 5,56 1,80 1,20 0,10 widia.com H27
