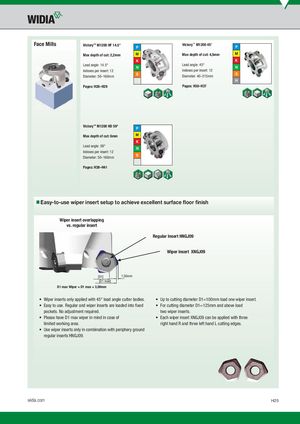

Face Mills Victory™ M1200 HF 14.5° P Victory™ M1200 45° P Max depth of cut: 2,2mm M Max depth of cut: 4,5mm M K K Lead angle: 14.5° N Lead angle: 45° N Indexes per insert: 12 Indexes per insert: 12 Diameter: 50–160mm S Diameter: 40–315mm S H Pages: H26–H29 Pages: H30–H37 Victory™ M1200 HD 59° P Max depth of cut: 6mm M K Lead angle: 59° N Indexes per insert: 12 Diameter: 50–160mm S Pages: H38–H41 „Easy-to-use wiper insert setup to achieve excellent surface floor finish Wiper insert overlapping vs. regular insert Regular Insert HNGJ09 Wiper Insert XNGJ09 [D1] 1,50mm [D1 max] D1 max Wiper = D1 max + 3,00mm • Wiper inserts only applied with 45° lead angle cutter bodies. • Up to cutting diameter D1=100mm load one wiper insert. • Easy to use. Regular and wiper inserts are loaded into fixed • For cutting diameter D1=125mm and above load pockets. No adjustment required. two wiper inserts. • Please have D1 max wiper in mind in case of • Each wiper insert XNGJ09 can be applied with three limited working area. right hand R and three left hand L cutting edges. • Use wiper inserts only in combination with periphery ground regular inserts HNGJ09. widia.com H25
