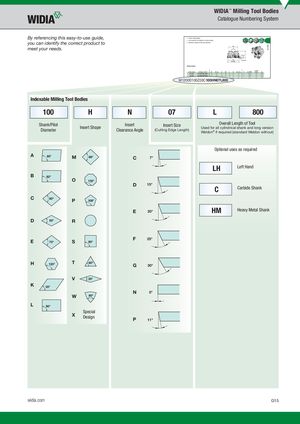

Face Mills WIDIA™ Milling Tool Bodies Catalogue Numbering System By referencing this easy-to-use guide, • Twelve cutting edges. • First choice for low depth-of-cut face milling. you can identify the correct product to • Maximum number of teeth per diameter. meet your needs. n Shell Mills coolant order number catalogue number D1 D1 max D D6 L L2 Ap1 max Z max RPM supply kg 3957995 M1200D040Z04HN07 40 48,7 22 38 40 40 3,5 4 15800 Yes 0,26 3957996 M1200D040Z05HN07 40 48,7 22 38 40 40 3,5 5 15800 Yes 0,26 3957997 M1200D050Z04HN07 50 58,7 22 38 40 40 3,5 4 12700 Yes 0,35 M1200D100Z03C100HN07L800 Indexable Milling Tool Bodies 100 H N 07 L 800 Shank/PilotDiameter Insert Shape InsertClearance AngleInsert Size(Cutting Edge Length) Overall Length of ToolUsed for all cylindrical shank and long versionWeldon® if required (standard Weldon without) Optional uses as required A M C LH Left Hand B O D C Carbide Shank C P E HM Heavy Metal Shank D R E S F H T G V K N W L Special X Design P widia.com G15
