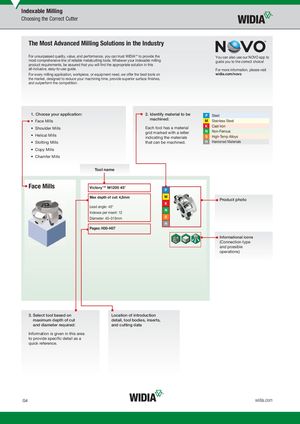

Indexable Milling Choosing the Correct Cutter The Most Advanced Milling Solutions in the Industry For unsurpassed quality, value, and performance, you can trust WIDIA™ to provide the You can also use our NOVO app to most comprehensive line of reliable metalcutting tools. Whatever your indexable milling guide you to the correct choice! product requirements, be assured that you will find the appropriate solution in this all-inclusive, easy-to-use guide. For more information, please visit For every milling application, workpiece, or equipment need, we offer the best tools on widia.com/novo. the market, designed to reduce your machining time, provide superior surface finishes, and outperform the competition. 1. Choose your application: 2. Identify material to be P Steel • Face Mills machined: M Stainless Steel • Shoulder Mills Each tool has a material K Cast Iron • Helical Mills grid marked with a letter N Non-Ferrousindicating the materialsSHigh-Temp Alloys • Slotting Mills that can be machined. H Hardened Materials • Copy Mills • Chamfer Mills Tool name Face Mills Victory™ M1200 45° P Max depth of cut: 4,5mm M Product photo K Lead angle: 45° Indexes per insert: 12 N Diameter: 40–315mm S H Pages: H30–H37 Informational icons (Connection type and possible operations) 3. Select tool based on Location of introduction maximum depth of cut detail, tool bodies, inserts, and diameter required: and cutting data Information is given in this area to provide specific detail as a quick reference. G4 widia.com
