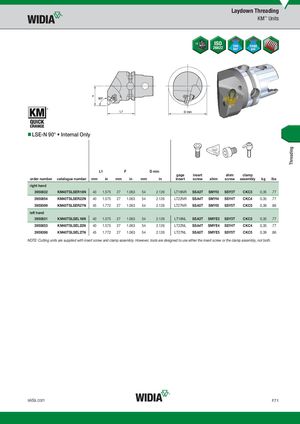

Threading Laydown Threading KM™ Units LSE-N 90° • Internal Only L1 F D min L1 F D min gage insert shim clamp order number catalogue number mm in mm in mm in insert screw shim screw assembly kg lbs right hand 3950832 KM40TSLSER16N 40 1.575 27 1.063 54 2.126 LT16NR SSA3T SMYI3 SSY3T CKC3 0,35 .77 3950854 KM40TSLSER22N 40 1.575 27 1.063 54 2.126 LT22NR SSA4T SMYI4 SSY4T CKC4 0,35 .77 3959399 KM40TSLSER27N 45 1.772 27 1.063 54 2.126 LT27NR SSA5T SMYI5 SSY5T CKC5 0,39 .86 left hand 3950831 KM40TSLSEL16N 40 1.575 27 1.063 54 2.126 LT16NL SSA3T SMYE3 SSY3T CKC3 0,35 .77 3950853 KM40TSLSEL22N 40 1.575 27 1.063 54 2.126 LT22NL SSA4T SMYE4 SSY4T CKC4 0,35 .77 3959398 KM40TSLSEL27N 45 1.772 27 1.063 54 2.126 LT27NL SSA5T SMYE5 SSY5T CKC5 0,39 .86 NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. widia.com F71
