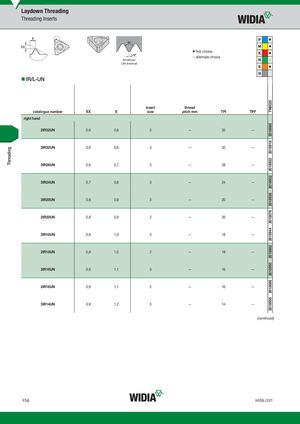

Threading TN602520188602018918201892220189322018938201887620189442018882201895020188862018955 Laydown Threading Threading Inserts P ⅷ M ⅷ ⅷ first choice K ⅷ ࠗ alternate choice American N ࠗ UN-Internal S ⅷ H IR/L-UN insert thread catalogue number EX E size pitch mm TPI TPF right hand 2IR32UN 0,6 0,6 2 — 32 — 3IR32UN 0,6 0,6 3 — 32 — 3IR28UN 0,6 0,7 3 — 28 — 3IR24UN 0,7 0,8 3 — 24 — 3IR20UN 0,8 0,9 3 — 20 — 2IR20UN 0,8 0,9 2 — 20 — 3IR18UN 0,8 1,0 3 — 18 — 2IR18UN 0,8 1,0 2 — 18 — 3IR16UN 0,9 1,1 3 — 16 — 2IR16UN 0,9 1,1 2 — 16 — 3IR14UN 0,9 1,2 3 — 14 — (continued) F56 widia.com
