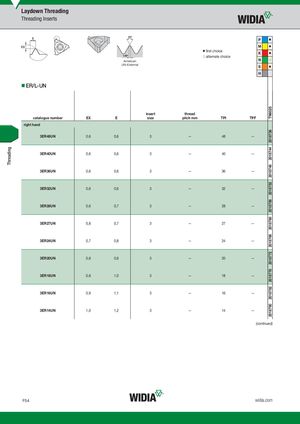

Threading TN602520187362018744201874820187522018756201876020187662018772201877820187822018790 Laydown Threading Threading Inserts P ⅷ M ⅷ ⅷ first choice K ⅷ ࠗ alternate choice American N ࠗ UN-External S ⅷ H ER/L-UN insert thread catalogue number EX E size pitch mm TPI TPF right hand 3ER48UN 0,6 0,6 3 — 48 — 3ER40UN 0,6 0,6 3 — 40 — 3ER36UN 0,6 0,6 3 — 36 — 3ER32UN 0,6 0,6 3 — 32 — 3ER28UN 0,6 0,7 3 — 28 — 3ER27UN 0,8 0,7 3 — 27 — 3ER24UN 0,7 0,8 3 — 24 — 3ER20UN 0,8 0,9 3 — 20 — 3ER18UN 0,8 1,0 3 — 18 — 3ER16UN 0,9 1,1 3 — 16 — 3ER14UN 1,0 1,2 3 — 14 — (continued) F54 widia.com
