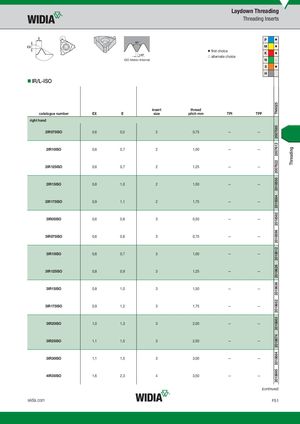

TN6025200758520076132007622201855020185642018582201859620186122018626201863620186522018663201867420186842018695 Threading Laydown Threading Threading Inserts P ⅷ M ⅷ ⅷ first choice K ⅷ ࠗ alternate choice ISO Metric-Internal N ࠗ S ⅷ H „IR/L-ISO insert thread catalogue number EX E size pitch mm TPI TPF right hand 2IR075ISO 0,6 0,3 2 0,75 — — 2IR10ISO 0,6 0,7 2 1,00 — — 2IR125ISO 0,6 0,7 2 1,25 — — 2IR15ISO 0,8 1,0 2 1,50 — — 2IR175ISO 0,9 1,1 2 1,75 — — 3IR05ISO 0,6 0,6 3 0,50 — — 3IR075ISO 0,6 0,6 3 0,75 — — 3IR10ISO 0,6 0,7 3 1,00 — — 3IR125ISO 0,8 0,9 3 1,25 — — 3IR15ISO 0,8 1,0 3 1,50 — — 3IR175ISO 0,9 1,2 3 1,75 — — 3IR20ISO 1,0 1,3 3 2,00 — — 3IR25ISO 1,1 1,5 3 2,50 — — 3IR30ISO 1,1 1,5 3 3,00 — — 4IR35ISO 1,6 2,3 4 3,50 — — (continued) widia.com F51
